Pelican-Hardigg™ DE Rackmount Cases

Extreme Heavy Rackmount Cases | 20-340 lb. Load Range | 19" Racks

Pelican-Hardigg DE Classic rackmount cases for 19 inch rack-mounted equipment

Pelican-Hardigg™ DE Rackmount Cases are extreme-duty shock rack cases designed to protect ultra-fragile 19" rack-mounted equipment during transport, deployment, and demanding field operations.

Pelican-Hardigg™ DE Classic Rackmount Cases are built for applications where standard rack cases are not enough. These rugged rotomolded rackmount cases help protect sensitive electronics, communications systems, test equipment, servers, control systems, and mission-critical rack-mounted components from shock, vibration, moisture, dust, and repeated handling.

The proven 19" EIA DE Classic Rack is one of the strongest and most secure rackmount case systems available from Pelican-Hardigg™. Each case uses precision-tuned elastomeric shock mount systems that are engineered to match the weight range of the equipment being protected, helping reduce the risk of damage during severe drops, aircraft turbulence, off-road travel, freight handling, and field deployment.

Pelican-Hardigg DE Classic rackmount cases provide extreme duty protection

DE Classic Rackmount Cases are usually intended for equipment that requires the highest level of protection available. If your rack-mounted equipment is ultra-fragile, high-value, difficult to replace, or must arrive ready to operate immediately, the Pelican-Hardigg™ DE Rackmount Case series is a strong solution.


Products 1-2 of 2
Show
Pelican-Hardigg DE Rackmount case
View Full Product
DE Rackmount Case
Price: QUOTE
Availability: Built To Order
Item #: RHD-DE-Rackmount-Case -

Pelican™ DE Rackmount Cases Pelican-Hardigg™ Double Lid Shockmounted rack with lightweight aluminum rack frame, rotomolded plastic body, front and rear covers, plastic handles and zinc black plated steel catches. Case features positive anti-shear latches, molded-in stacking ribs, molded tongue-in-groove gasketed parting line, elastomeric shock mounts, and molded-in color. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Case is free breathing, add PRV option to...

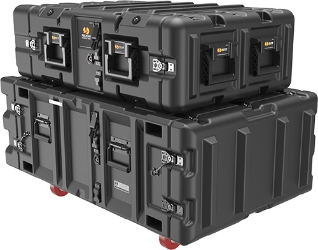

Server Rackmount cases
View Full Product
DE Rackmount Server Case
Price: QUOTE
Availability: Built To Order
Item #: RHD-DE-Rackmount-Server-Case -

Pelican™ DE Server Length Rackmount Cases Pelican-Hardigg™ Double Lid Shockmounted rack with lightweight aluminum rack frame, rotomolded plastic body, front and rear covers, plastic handles and zinc black plated steel catches. Case features positive anti-shear latches, molded-in stacking ribs, molded tongue-in-groove gasketed parting line, elastomeric shock mounts, and molded-in color. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Case is free breathing, add...

Please note: Pelican-Hardigg™ DE Rackmount Cases are molded at the time of order. Average production time is typically 4-6 weeks and may vary based on factory volume. For time-sensitive or off-the-shelf rackmount case needs, please view the Pelican-Hardigg™ BlackBox Rackmount Cases.

Pelican-Hardigg™ DE Rackmount Case Sizes

Model Number U-Size Inside
Height 		Inside
Length 		Inside
Width 		Lid
Front/Back 		Outside
Length* 		Outside
Width 		Outside
Height 		Weight
Lbs.** 		Reduced
Sway
DE2410 (20" Frame) 3U 5.25" 20.0" 19.0" 2.5"/2.5" 32.0" 27.0" 12.3" 43
DE2410 (33" Frame) 3U 5.25" 33.0" 19.0" 2.5"/2.5" 43.0" 27.0" 12.3" 50
DE2412 (20" Frame) 4U 7.00" 20.0" 19.0" 2.5"/2.5" 32.0" 27.0" 14.6" 50
DE2412 (33" Frame) 4U 7.00" 33.0" 19.0" 2.5"/2.5" 43.0" 27.0" 14.6" 53
DE2412 (20" Frame) 5U 8.75" 20.0" 19.0" 2.5"/2.5" 31.5" 27.0" 14.0" 51 Y
DE2414 (20" Frame) 5U 8.75" 20.0" 19.0" 2.5"/2.5" 31.5" 27.0" 17.0" 52
DE2414 (25" Frame) 5U 8.75" 25.0" 19.0" 2.5"/2.5" 34.5" 27.0" 17.0" 62
DE2414 (33" Frame) 5U 8.75" 33.0" 19.0" 2.5"/2.5" 43.0" 27.0" 16.6" 54
DE2414 (20" Frame) 6U 10.50" 20.0" 19.0" 2.5"/2.5" 31.5" 27.0" 17.0" 53 Y
DE2414 (25" Frame) 6U 10.50" 25.0" 19.0" 2.5"/2.5" 34.5" 27.0" 17.0" 63 Y
DE2416 (20" Frame) 6U 10.50" 20.0" 19.0" 2.5"/2.5" 31.5" 27.0" 19.0" 56
DE2416 (25" Frame) 6U 10.50" 25.0" 19.0" 2.5"/2.5" 34.5" 27.0" 19.0" 57
DE2418 (18" Frame) 7U 12.25" 18.0" 19.0" 2.5"/2.5" 27.5" 27.0" 21.0" 59
DE2416 (20" Frame) 7U 12.25" 20.0" 19.0" 2.5"/2.5" 31.5" 27.0" 19.0" 57 Y
DE2416 (25" Frame) 7U 12.25" 25.0" 19.0" 2.5"/2.5" 34.5" 27.0" 19.0" 58 Y
DE2418 (25" Frame) 7U 12.25" 25.0" 19.0" 2.5"/2.5" 34.5" 27.0" 21.0" 60
DE2418 (33" Frame) 7U 12.25" 33.0" 19.0" 2.5"/2.5" 43.0" 27.0" 20.6" 63
DE2418 (18" Frame) 8U 14.00" 18.0" 19.0" 2.5"/2.5" 27.5" 27.0" 21.0" 61 Y
DE2418 (25" Frame) 8U 14.00" 25.0" 19.0" 2.5"/2.5" 34.5" 27.0" 21.0" 61 Y
DE2421 (25" Frame) 9U 15.75" 25.0" 19.0" 2.5"/2.5" 34.0" 27.0" 24.0" 70
DE2421 (33" Frame) 9U 15.75" 33.0" 19.0" 2.5"/2.5" 43.0" 27.0" 24.3" 71
DE2421 (25" Frame) 10U 17.50" 25.0" 19.0" 2.5"/2.5" 34.5" 27.0" 24.0" 71 Y
DE2121 (17" Frame) 10U 17.50" 17.0" 19.0" 2.5"/2.5" 25.5" 24.0" 24.0" 47
DE2121 (28" Frame) 10U 17.50" 28.0" 19.0" 2.5"/2.5" 37.5" 24.0" 24.0" 76
DE2425 (25" Frame) 11U 19.25" 25.0" 19.0" 2.5"/2.5" 34.5" 27.0" 28.0" 75
DE2425 (25" Frame) 12U 21.00" 25.0" 19.0" 2.5"/2.5" 34.5" 27.0" 28.0" 76 Y
DE2430 (25" Frame) 14U 24.50" 25.0" 19.0" 2.5"/2.5" 34.5" 27.0" 33.0" 79
DE2430 (25" Frame) 15U 26.25" 25.0" 19.0" 2.5"/2.5" 34.5" 27.0" 33.0" 80 Y
DE2442 (25" Frame) 21U 36.75" 25.0" 19.0" 2.5"/2.5" 34.5" 27.0" 45.0" 103
DE2442 (25" Frame) 22U 38.50" 25.0" 19.0" 2.5"/2.5" 34.5" 27.0" 45.0" 104 Y
DE2652 (23" Frame) 26U 45.50" 23.0" 19.0" 2.5"/2.5" 32.5" 29.0" 55.0" 119
DE2652 (23" Frame) 27U 47.25" 23.0" 19.0" 2.5"/2.5" 32.5" 29.0" 55.0" 120 Y

Please note: Figures above are based on a two 2.5" depth lid configuration. Each 5.25" lid upgrade will increase the overall outside length and weight of the case.

* Outside case length will increase 2.75" for each additional 5.25" lid.
** Weight will increase 2 lbs. for each additional 5.25" lid. Drawings are available upon request.
Please request drawings from your sales representative.
All Pelican-Hardigg™ DE rackmount cases can be custom configured with your choice of options.

Pelican-Hardigg™ DE Rackmount Case Features

  • Extreme-duty 19" EIA rackmount protection for ultra-fragile equipment
  • Ideal for delicate rack-mounted equipment requiring maximum protection
  • Individually fine-tuned shock mounts for excellent shock and vibration dampening
  • Precision-engineered 2" long elastomeric shockmounts matched to equipment weight range
  • Two inches of sway space helps insulate equipment from shock and vibration while supporting airflow
  • Reduced sway space available on select models
  • Rapid Rack removable rack frame option provides complete frame accessibility
  • Security for equipment from 20-340 lbs.; custom solutions available for heavier systems
  • High-strength, lightweight heat-treated aluminum 19" Versa-Racks
  • Designed to protect equipment from severe drops, aircraft turbulence, off-road travel, and repeated handling
  • Super Tight Seal with gasketed, tongue-in-groove parting line
  • Resilient polyethylene construction absorbs severe impact without permanent deformation

Extreme-Duty Pelican-Hardigg™ Shock Rack Cases

DE Classic Rackmount Cases are designed for rack-mounted equipment that may be exposed to harsh handling, repeated transport, vibration, drop hazards, and demanding field conditions. These cases are commonly used for military, aerospace, industrial, communications, broadcast, testing, instrumentation, and other professional equipment applications.

Cases2Go can help you select the correct Pelican DE rackmount case based on rack height, equipment depth, total loaded weight, fragility, sway space requirements, reduced sway needs, lid configuration, transport method, and deployment environment.

Custom Pelican DE Rackmount Case Configurations

Because DE Rackmount Cases are designed around the equipment being protected, Cases2Go can help review your rack height, frame depth, equipment weight, shock requirements, lid configuration, reduced sway needs, airflow requirements, and options before quoting the case. These cases can also be paired with custom foam, panel integration, power and connection features, and complete deployment-ready rackmount solutions.

Need a Pelican DE Rackmount Case for Ultra-Fragile Equipment?

From Pelican-Hardigg™ DE Classic shock rack cases to custom foam interiors, rack accessories, reduced sway configurations, and integrated equipment transport systems, Cases2Go can help configure a rackmount case solution around your equipment and deployment requirements.
