Pelican-Hardigg™ Single Lid Cases | Rotomolded Shipping & Transport Cases

Pelican-Hardigg™ single lid cases are the industry standard for protecting and transporting sensitive equipment across industrial, commercial, scientific, and military applications. With over 300 standard sizes available, these rotomolded transport cases are built for durability, reliability, and long-term reuse.

Designed for strength and performance, Pelican-Hardigg™ cases deliver lightweight protection with heavy-duty construction, making them ideal for shipping electronics, tools, medical devices, audio equipment, and mission-critical systems.

Pelican-Hardigg™ single lid cases provide rugged, reusable protection for virtually any type of equipment.

Request a Pelican-Hardigg™ Single Lid Quote

View Single Lid Case Size List

Products 1-24 of 306
Show
AL1010-0904 Single Lid Case - 10 x 10 x 13 ID
Price: QUOTE
View Full Product
AL1010-0904 Single Lid Case - 10 x 10 x 13 ID
AL1010-0904
Availability: Built To Order
Item #: RHD-AL1010-0904 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1010-0904 Inside Dimensions: 10 x 10 x 13" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

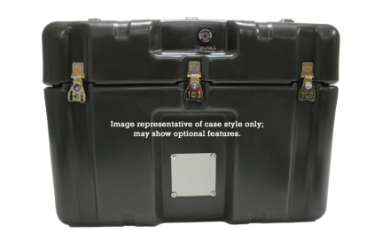

Image representative of single lid case style with optional features.
Price: QUOTE
View Full Product
AL1010-0905 Single Lid Case - 10 x 10 x 14 ID
AL1010-0905
Availability: Built To Order
Item #: RHD-AL1010-0905 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1010-0905 Inside Dimensions: 10 x 10 x 14" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

AL1010-1404 Single Lid Case - 10 x 10 x 18 ID
Price: QUOTE
View Full Product
AL1010-1404 Single Lid Case - 10 x 10 x 18 ID
AL1010-1404
Availability: Built To Order
Item #: RHD-AL1010-1404 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1010-1404 Inside Dimensions: 10 x 10 x 18" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

AL1010-1405 Single Lid Case - 10 x 10 x 19 ID
Price: QUOTE
View Full Product
AL1010-1405 Single Lid Case - 10 x 10 x 19 ID
AL1010-1405
Availability: Built To Order
Item #: RHD-AL1010-1405 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1010-1405 Inside Dimensions: 10 x 10 x 19" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

AL1212-0404 Single Lid Case - 12 x 12 x 8 ID
Price: QUOTE
View Full Product
AL1212-0404 Single Lid Case - 12 x 12 x 8 ID
AL1212-0404
Availability: Built To Order
Item #: RHD-AL1212-0404 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1212-0404 Inside Dimensions: 12 x 12 x 8" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

AL1212-0405 Single Lid Case - 12 x 12 x 9 ID
Price: QUOTE
View Full Product
AL1212-0405 Single Lid Case - 12 x 12 x 9 ID
AL1212-0405
Availability: Built To Order
Item #: RHD-AL1212-0405 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1212-0405 Inside Dimensions: 12 x 12 x 9" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

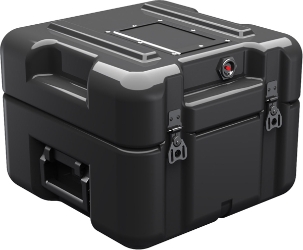

AL1212-0604 Single Lid Case - 12 x 12 x 10 ID
Price: QUOTE
View Full Product
AL1212-0604 Single Lid Case - 12 x 12 x 10 ID
AL1212-0604
Availability: Built To Order
Item #: RHD-AL1212-0604 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1212-0604 Inside Dimensions: 12 x 12 x 10" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

AL1212-0605 Single Lid Case - 12 x 12 x 11 ID
Price: QUOTE
View Full Product
AL1212-0605 Single Lid Case - 12 x 12 x 11 ID
AL1212-0605
Availability: Built To Order
Item #: RHD-AL1212-0605 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1212-0605 Inside Dimensions: 12 x 12 x 11" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

AL1212-1204 Single Lid Case - 12 x 12 x 16 ID
Price: QUOTE
View Full Product
AL1212-1204 Single Lid Case - 12 x 12 x 16 ID
AL1212-1204
Availability: Built To Order
Item #: RHD-AL1212-1204 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1212-1204 Inside Dimensions: 12 x 12 x 16" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

AL1212-1205 Single Lid Case - 12 x 12 x 17 ID
Price: QUOTE
View Full Product
AL1212-1205 Single Lid Case - 12 x 12 x 17 ID
AL1212-1205
Availability: Built To Order
Item #: RHD-AL1212-1205 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1212-1205 Inside Dimensions: 12 x 12 x 17" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

AL1212-1504 Single Lid Case - 12 x 12 x 19 ID
Price: QUOTE
View Full Product
AL1212-1504 Single Lid Case - 12 x 12 x 19 ID
AL1212-1504
Availability: Built To Order
Item #: RHD-AL1212-1504 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1212-1504 Inside Dimensions: 12 x 12 x 19" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

AL1212-1505 Single Lid Case - 12 x 12 x 20 ID
Price: QUOTE
View Full Product
AL1212-1505 Single Lid Case - 12 x 12 x 20 ID
AL1212-1505
Availability: Built To Order
Item #: RHD-AL1212-1505 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1212-1505 Inside Dimensions: 12 x 12 x 20" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

AL1212-1904 Single Lid Case - 12 x 12 x 23 ID
Price: QUOTE
View Full Product
AL1212-1904 Single Lid Case - 12 x 12 x 23 ID
AL1212-1904
Availability: Built To Order
Item #: RHD-AL1212-1904 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1212-1904 Inside Dimensions: 12 x 12 x 23" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

AL1212-1905 Single Lid Case - 12 x 12 x 24 ID
Price: QUOTE
View Full Product
AL1212-1905 Single Lid Case - 12 x 12 x 24 ID
AL1212-1905
Availability: Built To Order
Item #: RHD-AL1212-1905 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1212-1905 Inside Dimensions: 12 x 12 x 24" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

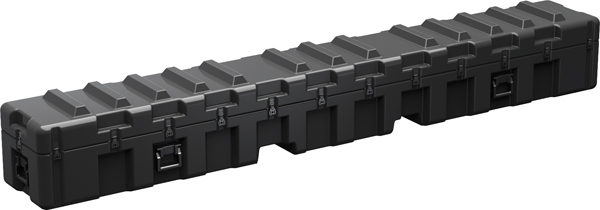

AL13115-0805FT Single Lid Case - 131 x 15 x 13 ID
Price: QUOTE
View Full Product
AL13115-0805FT Single Lid Case - 131 x 15 x 13 ID
AL13115-0805FT/AC
Availability: Built To Order
Item #: RHD-AL13115-0805FT/AC -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL13115-0805FT Inside Dimensions: 131 x 15 x 13" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

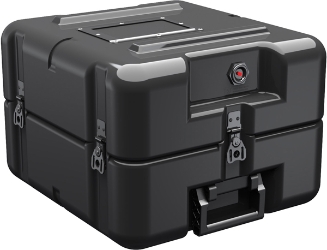

AL1413-0505 Single Lid Case - 14 x 13 x 10 ID
Price: QUOTE
View Full Product
AL1413-0505 Single Lid Case - 14 x 13 x 10 ID
AL1413-0505
Availability: Built To Order
Item #: RHD-AL1413-0505 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1413-0505 Inside Dimensions: 14 x 13 x 10" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

AL1413-1005 Single Lid Case - 14 x 13 x 15 ID
Price: QUOTE
View Full Product
AL1413-1005 Single Lid Case - 14 x 13 x 15 ID
AL1413-1005
Availability: Built To Order
Item #: RHD-AL1413-1005 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1413-1005 Inside Dimensions: 14 x 13 x 15" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

AL1413-2105 Single Lid Case - 14 x 13 x 26 ID
Price: QUOTE
View Full Product
AL1413-2105 Single Lid Case - 14 x 13 x 26 ID
AL1413-2105
Availability: Built To Order
Item #: RHD-AL1413-2105 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1413-2105 Inside Dimensions: 14 x 13 x 26" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

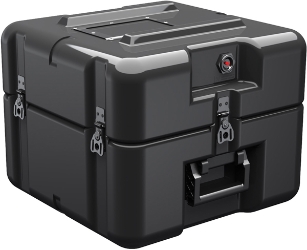

AL1414-0705 Single Lid Case - 14 x 14 x 12 ID
Price: QUOTE
View Full Product
AL1414-0705 Single Lid Case - 14 x 14 x 12 ID
AL1414-0705
Availability: Built To Order
Item #: RHD-AL1414-0705 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1414-0705 Inside Dimensions: 14 x 14 x 12" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

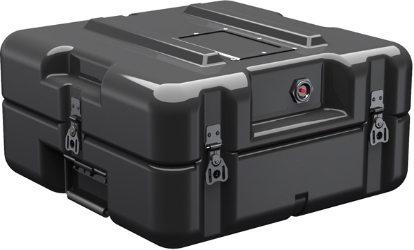

AL1616-0404 Single Lid Case - 16 x 16 x 8 ID
Price: QUOTE
View Full Product
AL1616-0404 Single Lid Case - 16 x 16 x 8 ID
AL1616-0404
Availability: Built To Order
Item #: RHD-AL1616-0404 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1616-0404 Inside Dimensions: 16 x 16 x 8" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

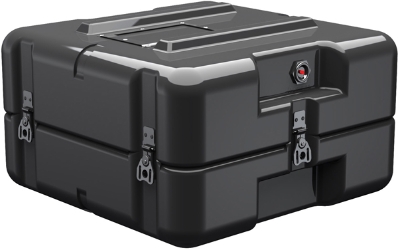

AL1616-0405 Single Lid Case - 16 x 16 x 9 ID
Price: QUOTE
View Full Product
AL1616-0405 Single Lid Case - 16 x 16 x 9 ID
AL1616-0405
Availability: Built To Order
Item #: RHD-AL1616-0405 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1616-0405 Inside Dimensions: 16 x 16 x 9" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

AL1616-0412 Single Lid Case - 16 x 16 x 16 ID
Price: QUOTE
View Full Product
AL1616-0412 Single Lid Case - 16 x 16 x 16 ID
AL1616-0412AC/HL
Availability: Built To Order
Item #: RHD-AL1616-0412AC/HL -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1616-0412 Inside Dimensions: 16 x 16 x 16" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

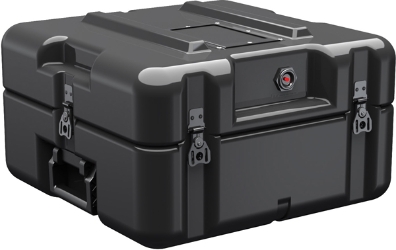

AL1616-0504 Single Lid Case - 16 x 16 x 9 ID
Price: QUOTE
View Full Product
AL1616-0504 Single Lid Case - 16 x 16 x 9 ID
AL1616-0504
Availability: Built To Order
Item #: RHD-AL1616-0504 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1616-0504 Inside Dimensions: 16 x 16 x 9" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

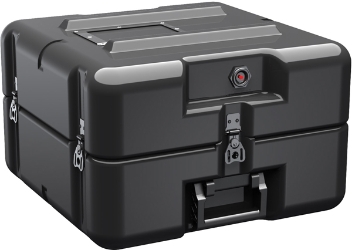

AL1616-0505 Single Lid Case - 16 x 16 x 10 ID
Price: QUOTE
View Full Product
AL1616-0505 Single Lid Case - 16 x 16 x 10 ID
AL1616-0505
Availability: Built To Order
Item #: RHD-AL1616-0505 -

Pelican-Hardigg™ Single Lid Rotomolded Case | AL1616-0505 Inside Dimensions: 16 x 16 x 10" high Pelican-Hardigg™ Single Lid rotationally molded polyethylene plastic case features gasketed tongue and groove closure, reinforced corners, positive anti-shear latches (recessed zinc plated), plastic handles and stackable design. Cases are engineered to exceed ATA Specification 300, Category 1 and MIL-STD-810. Pelican-Hardigg™ Rotomolded Cases provide a rugged and dependable solution for...

Pelican-Hardigg™ Rotomolded Plastic Single Lid Shipping Case Sizes

Pelican-Hardigg rotomolded plastic single lid shipping cases

Part Number Reference

Understanding Pelican-Hardigg™ Single Lid Case Part Numbers

Pelican-Hardigg™ rotomolded single lid case part numbers identify the case width, interior dimensions, lid/base split, and available hardware options. Use the example below as a quick reference when reviewing size charts or requesting a quote.

RHD-AL32261413FT/AC/HL/PZ
AL

Parting-Line Width

Identifies the case parting-line width. In this example, AL represents a 1.5" parting-line width.

32

Interior Length

Represents the approximate interior case length in inches.

26

Interior Width

Represents the approximate interior case width in inches.

14

Interior Base Height

Indicates the approximate interior base depth or base height of the case.

13

Interior Lid Height

Indicates the approximate interior lid depth or lid height of the case.

FT

Fork Truck Slots

Indicates the case is configured with fork truck slots for easier material handling.

AC

All-Catch Hardware

Indicates an all-catch closure configuration.

HL

Handle on Lid

Indicates the case includes a handle mounted on the lid.

P

Plastic Handles

Indicates plastic handles are included as part of the case hardware configuration.

Z

Zinc Hardware

Indicates zinc-plated hardware is included.

Parting-Line Width Key

AL1.5"
BL2.0"
CL1.0"
DL1.75"

Hardware Options

Pelican-Hardigg™ Single Lid cases come standard with plastic handles and zinc-plated latches. Zinc handles or stainless steel handles and latches are also available for applications that require upgraded hardware.

Single Lid Case Part Number Reference

Example part number: RHD-AL3226-1413FT/AC/HL/PZ. The model number identifies parting-line width, interior length, interior width, base depth, lid depth, and available handling or hardware options.

Model # Interior (L x W x H) Exterior (L x W x H) Base Depth Lid Depth Weight Empty Ship Via
AL1010-0904 9.9 x 10.0 x 12.7" 12.9 x 13.0 x 14.4" 8.7" 4.0" 9.8 lbs UPS
AL1010-0905 9.9 x 10.0 x 14.0" 12.9 x 13.0 x 15.6" 8.7" 5.3" 10.6 lbs UPS
AL1010-1404 9.9 x 10.0 x 17.8" 12.9 x 13.0 x 19.4" 13.8" 4.0" 11.5 lbs UPS
AL1010-1405 9.9 x 10.0 x 19.1" 12.9 x 13.0 x 20.7" 13.8" 5.3" 12.4 lbs UPS
CL1109-0303HL 11.0 x 8.9 x 6.0" 13.1 x 10.9 x 8.2" 3.0" 3.0" 5.4 lbs UPS
AL1212-0404 12.0 x 12.0 x 8.2" 15.0 x 15.0 x 9.9" 4.2" 4.0" 10.6 lbs UPS
AL1212-0405 12.0 x 12.0 x 9.3" 15.0 x 15.0 x 11.0" 4.2" 5.1" 10.8 lbs UPS
AL1212-0604 12.0 x 12.0 x 10.3" 15.0 x 15.0 x 12.0" 6.3" 4.0" 11.0 lbs UPS
AL1212-0605 12.0 x 12.0 x 11.4" 15.0 x 15.0 x 13.0" 6.3" 5.1" 11.2 lbs UPS
AL1212-1204 12.0 x 12.0 x 15.3" 15.0 x 15.0 x 17.0" 11.3" 4.0" 12.8 lbs UPS
AL1212-1205 12.0 x 12.0 x 16.4" 15.0 x 15.0 x 18.1" 11.3" 5.1" 13.1 lbs UPS
AL1212-1504 12.0 x 12.0 x 19.2" 15.0 x 15.0 x 20.9" 15.2" 4.0" 14.7 lbs UPS
AL1212-1505 12.0 x 12.0 x 20.3" 15.0 x 15.0 x 22.0" 15.2" 5.1" 14.9 lbs UPS
AL1212-1904 12.0 x 12.0 x 22.7" 15.0 x 15.0 x 24.4" 18.7" 4.0" 16.8 lbs UPS
AL1212-1905 12.0 x 12.0 x 23.8" 15.0 x 15.0 x 25.5" 18.7" 5.1" 17.0 lbs UPS
AL1414-0705 14.0 x 14.1 x 12.9" 17.0 x 17.1 x 13.6" 6.8" 5.2" 14.5 lbs UPS
AL1413-0505 14.5 x 13.1 x 10.3" 17.5 x 16.1 x 12.0" 5.1" 5.2" 13.5 lbs UPS
AL1413-1005 14.5 x 13.1 x 15.4" 17.5 x 16.1 x 17.1" 10.2" 5.2" 16.5 lbs UPS
AL1413-2105 14.5 x 13.1 x 26.0" 17.5 x 16.1 x 27.7" 20.8" 5.2" 19.7 lbs UPS
CL1412-0502 14.8 x 11.9 x 7.4" 16.9 x 13.9 x 8.4" 4.9" 2.5" 9.4 lbs UPS
AL1616-0404 15.8 x 15.9 x 7.8" 18.8 x 18.9 x 9.4" 3.9" 3.9" 12.6 lbs UPS
AL1616-0405 15.8 x 15.9 x 9.0" 18.8 x 18.9 x 10.7" 3.9" 5.1" 13.7 lbs UPS
AL1616-0412AC/HL 15.8 x 15.9 x 16.1" 18.8 x 18.9 x 17.7" 3.9" 12.2" 17.9 lbs UPS
AL1616-0504 15.8 x 15.9 x 9.3" 18.8 x 18.9 x 11.0" 5.4" 3.9" 13.9 lbs UPS
AL1616-0505 15.8 x 15.9 x 10.5" 18.8 x 18.9 x 12.2" 5.4" 5.1" 14.5 lbs UPS
AL1616-0512AC/HL 15.8 x 15.9 x 17.6" 18.8 x 18.9 x 19.2" 5.4" 12.2" 18.5 lbs UPS
AL1616-1004 15.8 x 15.9 x 13.8" 18.8 x 18.9 x 15.4" 9.9" 3.9" 17.2 lbs UPS
AL1616-1005 15.8 x 15.9 x 15.0" 18.8 x 18.9 x 16.7" 9.9" 5.1" 17.6 lbs UPS
AL1616-1012AC/HL 15.8 x 15.9 x 22.1" 18.8 x 18.9 x 23.7" 9.9" 12.2" 22.4 lbs UPS
AL1616-1204 15.8 x 15.9 x 15.2" 18.8 x 18.9 x 16.9" 11.3" 3.9" 17.9 lbs UPS
AL1616-1205 15.8 x 15.9 x 16.4" 18.8 x 18.9 x 18.1" 11.3" 5.1" 18.6 lbs UPS
AL1616-1212AC/HL 15.8 x 15.9 x 23.5" 18.8 x 18.9 x 25.2" 11.3" 12.2" 23.2 lbs UPS
AL1616-1804 15.8 x 15.9 x 22.1" 18.8 x 18.9 x 23.8" 18.3" 3.9" 21.7 lbs UPS
AL1616-1805 15.8 x 15.9 x 23.4" 18.8 x 18.9 x 25.1" 18.3" 5.1" 22.0 lbs UPS
AL1616-1812AC/HL 15.8 x 15.9 x 30.5" 18.8 x 18.9 x 32.1" 18.3" 12.2" 26.9 lbs UPS
CL1713-0403 16.9 x 12.9 x 7.4" 19.0 x 14.9 x 9.1" 4.4" 3.0" 6.8 lbs UPS
CL1713-0408AC/HL 16.9 x 12.9 x 12.0" 19.0 x 14.9 x 13.7" 4.4" 7.6" 11.0 lbs UPS
AL1717-0909AC/HL 17.0 x 17.0 x 17.9" 20.0 x 20.0 x 19.6" 8.9" 9.0" 18.8 lbs UPS
CL1715-0904 17.1 x 14.9 x 14.0" 19.3 x 16.9 x 15.7" 9.9" 4.2" 12.6 lbs UPS
AL1818-0603HL 17.9 x 17.9 x 9.6" 20.9 x 20.9 x 11.3" 6.4" 3.2" 16.5 lbs UPS
AL1814-0504 18.0 x 14.6 x 9.1" 21.0 x 17.6 x 10.8" 5.2" 3.9" 14.4 lbs UPS
AL1814-0505 18.0 x 14.6 x 10.4" 21.0 x 17.6 x 12.1" 5.2" 5.2" 15.6 lbs UPS
AL1814-1504 18.0 x 14.6 x 18.8" 21.0 x 17.6 x 20.6" 14.9" 3.9" 19.3 lbs UPS
AL1814-1505 18.0 x 14.6 x 20.1" 21.0 x 17.6 x 21.8" 14.9" 5.2" 20.5 lbs UPS
AL1814-2204 18.0 x 14.6 x 26.1" 21.0 x 17.6 x 27.8" 22.2" 3.9" 23.4 lbs UPS
AL1814-2205 18.0 x 14.6 x 27.4" 21.0 x 17.6 x 29.1" 22.2" 5.2" 24.6 lbs UPS
AL2015-0503HL 19.8 x 15.6 x 7.9" 22.8 x 18.6 x 9.5" 5.1" 2.8" 16.5 lbs UPS
AL2015-1503HL 19.8 x 15.6 x 18.0" 22.8 x 18.6 x 19.6" 15.2" 2.8" 24.1 lbs UPS
AL2013-0403 19.9 x 13.0 x 7.0" 22.9 x 16.0 x 8.7" 4.0" 3.0" 13.5 lbs UPS
AL2013-0903 19.9 x 13.0 x 12.3" 22.9 x 16.0 x 13.9" 9.3" 3.0" 16.8 lbs UPS
AL2020-1305 19.9 x 19.9 x 18.1" 22.9 x 22.9 x 19.8" 12.9" 5.2" 25.7 lbs UPS
CL2012-0902 20.2 x 11.8 x 11.7" 22.3 x 13.8 x 13.4" 9.2" 2.5" 12.2 lbs UPS
AL2017-0706 20.2 x 17.2 x 13.0" 23.2 x 20.2 x 14.8" 7.0" 6.0" 19.1 lbs UPS
AL2216-0503 22.0 x 16.0 x 8.3" 25.0 x 19.0 x 10.0" 5.3" 3.0" 17.4 lbs UPS
AL2216-0505 22.0 x 16.0 x 10.6" 25.0 x 19.0 x 12.2" 5.3" 5.3" 18.5 lbs UPS
AL2216-0803 22.0 x 16.0 x 11.4" 25.0 x 19.0 x 13.4" 8.4" 3.0" 18.8 lbs UPS
AL2216-0805 22.0 x 16.0 x 13.7" 25.0 x 19.0 x 15.4" 8.4" 5.3" 20.0 lbs UPS
AL2216-1203 22.0 x 16.0 x 15.3" 25.0 x 19.0 x 17.0" 12.3" 3.0" 20.9 lbs UPS
AL2216-1205 22.0 x 16.0 x 17.6" 25.0 x 19.0 x 19.2" 12.3" 5.3" 22.1 lbs UPS
AL2221-0402 22.5 x 21.1 x 6.2" 25.5 x 24.1 x 8.3" 3.9" 2.3" 21.2 lbs UPS
AL2221-0404 22.5 x 21.1 x 7.7" 25.5 x 24.1 x 9.8" 3.9" 3.8" 22.3 lbs UPS
AL2221-0602 22.5 x 21.1 x 8.8" 25.5 x 24.1 x 10.4" 6.5" 2.3" 22.8 lbs UPS
AL2221-0405 22.5 x 21.1 x 8.9" 25.5 x 24.1 x 11.0" 3.9" 5.0" 23.1 lbs UPS
AL2221-0604 22.5 x 21.1 x 10.3" 25.5 x 24.1 x 11.9" 6.5" 3.8" 24.0 lbs UPS
AL2221-0605 22.5 x 21.1 x 11.5" 25.5 x 24.1 x 13.1" 6.5" 5.0" 24.8 lbs UPS
AL2221-1202 22.5 x 21.1 x 14.3" 25.5 x 24.1 x 16.0" 12.1" 2.3" 25.0 lbs UPS
AL2221-1204 22.5 x 21.1 x 15.9" 25.5 x 24.1 x 17.5" 12.1" 3.8" 26.2 lbs UPS
AL2221-1205 22.5 x 21.1 x 17.1" 25.5 x 24.1 x 18.8" 12.1" 5.0" 27.3 lbs UPS
AL2221-0414AC/HL 22.5 x 21.1 x 18.2" 25.5 x 24.1 x 20.2" 3.9" 14.3" 30.1 lbs UPS
AL2221-0614AC/HL 22.5 x 21.1 x 20.8" 25.5 x 24.1 x 22.4" 6.5" 14.3" 29.4 lbs UPS
AL2221-1802 22.5 x 21.1 x 20.9" 25.5 x 24.1 x 22.6" 18.6" 2.3" 32.0 lbs UPS
AL2221-1804 22.5 x 21.1 x 22.4" 25.5 x 24.1 x 24.1" 18.6" 3.8" 33.2 lbs UPS
AL2221-1805 22.5 x 21.1 x 23.6" 25.5 x 24.1 x 25.3" 18.6" 5.0" 34.1 lbs UPS
AL2221-0419DE 22.5 x 21.1 x 23.6" 25.5 x 24.1 x 25.3" 4.0" 19.6" 32.0 lbs UPS
AL2221-1214AC 22.5 x 21.1 x 26.4" 25.5 x 24.1 x 28.0" 12.1" 14.3" 31.8 lbs FRT
AL2221-2802 22.5 x 21.1 x 30.4" 25.5 x 24.1 x 32.1" 28.1" 2.3" 38.6 lbs FRT
AL2221-2804 22.5 x 21.1 x 31.9" 25.5 x 24.1 x 33.6" 28.1" 3.8" 39.8 lbs FRT
AL2221-1814AC 22.5 x 21.1 x 32.9" 25.5 x 24.1 x 34.6" 18.6" 14.3" 38.6 lbs FRT
AL2221-2805 22.5 x 21.1 x 33.1" 25.5 x 24.1 x 34.8" 28.1" 5.0" 40.6 lbs FRT
AL2221-2814AC 22.5 x 21.1 x 42.4" 25.5 x 24.1 x 44.1" 28.1" 14.3" 42.4 lbs FRT
AL2318-1205 22.9 x 17.9 x 17.5" 25.9 x 20.9 x 19.4" 12.3" 5.2" 25.5 lbs UPS
AL2318-1705 22.9 x 17.9 x 22.4" 25.9 x 20.9 x 24.2" 17.2" 5.2" 29.1 lbs UPS
AL2313-1004 23.0 x 13.0 x 15.5" 26.0 x 16.0 x 17.7" 10.9" 4.6" 20.2 lbs UPS
AL2315-2507 23.3 x 15.3 x 32.5" 26.3 x 18.3 x 35.7" 25.4" 7.1" 32.2 lbs UPS
AL2221-2302 23.3 x 21.4 x 25.4" 26.5 x 24.6 x 27.5" 23.3" 2.1" 28.5 lbs UPS
AL2221-2304 23.3 x 21.4 x 27.4" 26.5 x 24.6 x 29.1" 23.3" 4.1" 29.9 lbs UPS
AL2221-2305 23.3 x 21.4 x 28.7" 26.5 x 24.6 x 30.5" 23.3" 5.4" 30.8 lbs UPS
AL2316-0604 23.5 x 15.9 x 11.3" 26.5 x 18.9 x 13.4" 6.4" 4.9" 19.8 lbs UPS
AL2417-1505 24.0 x 17.0 x 20.0" 27.0 x 20.0 x 22.0" 14.8" 5.2" 27.3 lbs UPS
AL2412-1505 24.2 x 12.0 x 20.1" 27.2 x 15.0 x 22.3" 14.9" 5.2" 22.0 lbs UPS
AL2415-0215AC/HL 24.3 x 15.3 x 16.7" 27.3 x 18.3 x 19.0" 1.9" 14.8" 25.7 lbs UPS
AL2414-1604 24.3 x 14.3 x 20.1" 27.3 x 17.3 x 22.3" 16.1" 4.1" 24.0 lbs UPS
AL2414-0509AC/HL 24.6 x 14.6 x 14.5" 27.6 x 17.6 x 16.7" 5.2" 9.3" 23.6 lbs UPS
CL2406-0303 24.8 x 6.6 x 6.1" 26.9 x 8.6 x 7.8" 3.1" 3.1" 6.6 lbs UPS
CL2407-0404 24.8 x 7.5 x 6.9" 26.9 x 9.5 x 8.6" 3.5" 3.4" 8.8 lbs UPS
AL2423-0503 24.8 x 23.3 x 8.0" 27.8 x 26.3 x 11.6" 4.7" 3.3" 23.3 lbs UPS
AL2423-0504 24.8 x 23.3 x 8.6" 27.8 x 26.3 x 12.2" 4.7" 3.9" 24.0 lbs UPS
AL2423-0506 24.8 x 23.3 x 11.0" 27.8 x 26.3 x 13.0" 4.7" 6.3" 25.0 lbs UPS
AL2423-0903 24.8 x 23.3 x 12.1" 27.8 x 26.3 x 15.2" 8.8" 3.3" 24.9 lbs UPS
AL2423-0511AC/HL 24.8 x 23.3 x 16.0" 27.8 x 26.3 x 19.6" 4.7" 11.3" 30.2 lbs UPS
AL2423-0904 24.8 x 23.3 x 12.7" 27.8 x 26.3 x 15.8" 8.8" 3.9" 25.6 lbs UPS
AL2423-1103 24.8 x 23.3 x 14.1" 27.8 x 26.3 x 16.8" 10.8" 3.3" 27.3 lbs UPS
AL2423-1104 24.8 x 23.3 x 14.7" 27.8 x 26.3 x 17.3" 10.8" 3.9" 28.0 lbs UPS
AL2423-0906 24.8 x 23.3 x 15.1" 27.8 x 26.3 x 18.2" 8.8" 6.3" 28.0 lbs UPS
AL2423-1106 24.8 x 23.3 x 17.1" 27.8 x 26.3 x 19.7" 10.8" 6.3" 29.5 lbs UPS
AL2423-0911AC/HL 24.8 x 23.3 x 20.1" 27.8 x 26.3 x 23.2" 8.8" 11.3" 31.8 lbs UPS
AL2423-1111AC/HL 24.8 x 23.3 x 22.1" 27.8 x 26.3 x 24.7" 10.8" 11.3" 32.3 lbs UPS
AL2617-0604 26.0 x 17.3 x 9.9" 29.0 x 20.3 x 12.1" 6.1" 3.8" 22.5 lbs UPS
AL2617-1104 26.0 x 17.3 x 14.8" 29.0 x 20.3 x 16.9" 11.0" 3.8" 26.2 lbs UPS
AL2624-0503 26.0 x 24.0 x 8.8" 29.0 x 27.0 x 12.0" 5.4" 3.4" 24.9 lbs UPS
AL2624-0505 26.0 x 24.1 x 10.5" 29.0 x 27.0 x 13.9" 5.4" 5.1" 28.0 lbs UPS
AL2624-0513AC 26.0 x 24.1 x 18.5" 29.0 x 27.0 x 21.9" 5.4" 13.1" 32.0 lbs UPS
AL2624-0524AC 26.0 x 24.1 x 29.4" 29.0 x 27.0 x 32.7" 5.4" 24.0" 42.0 lbs FRT
AL2624-0803 26.1 x 24.0 x 11.5" 29.1 x 27.0 x 14.5" 8.1" 3.4" 28.0 lbs UPS
AL2624-0803W 26.1 x 24.0 x 11.5" 29.1 x 27.0 x 14.5" 8.1" 3.4" 28.0 lbs UPS
AL2624-0805 26.1 x 24.0 x 13.2" 29.1 x 27.0 x 16.8" 8.1" 5.1" 31.3 lbs UPS
AL2624-0805W 26.1 x 24.0 x 13.2" 29.1 x 27.0 x 16.8" 8.1" 5.1" 31.3 lbs UPS
AL2624-1203 26.1 x 24.0 x 15.3" 29.1 x 27.0 x 18.5" 11.9" 3.4" 31.0 lbs UPS
AL2624-1205 26.1 x 24.0 x 17.0" 29.1 x 27.0 x 20.7" 11.9" 5.1" 34.1 lbs UPS
AL2624-0813AC/HL 26.1 x 24.0 x 21.2" 29.1 x 27.0 x 24.9" 8.1" 13.1" 36.2 lbs FRT
AL2624-1803 26.1 x 24.0 x 21.2" 29.1 x 27.0 x 25.1" 17.8" 3.4" 35.0 lbs FRT
AL2624-1805 26.1 x 24.0 x 22.9" 29.1 x 27.0 x 26.6" 17.8" 5.1" 38.5 lbs FRT
AL2624-1213AC/HL 26.1 x 24.0 x 25.0" 29.1 x 27.0 x 28.7" 11.9" 13.1" 38.2 lbs FRT
AL2624-2703 26.1 x 24.0 x 30.1" 29.1 x 27.0 x 34.4" 26.7" 3.4" 41.0 lbs FRT
AL2624-1813AC/HL 26.1 x 24.0 x 30.9" 29.1 x 27.0 x 34.6" 17.8" 13.1" 43.5 lbs FRT
AL2624-2705 26.1 x 24.0 x 31.8" 29.1 x 27.0 x 35.5" 26.7" 5.1" 44.5 lbs FRT
AL2624-0824AC/HL 26.1 x 24.0 x 32.1" 29.1 x 27.0 x 35.8" 8.1" 24.0" 45.4 lbs FRT
AL2624-1224AC/HL 26.1 x 24.0 x 35.9" 29.1 x 27.0 x 39.6" 11.9" 24.0" 48.2 lbs FRT
AL2624-2713AC 26.1 x 24.0 x 39.8" 29.1 x 27.0 x 43.5" 26.7" 13.1" 49.4 lbs FRT
AL2624-1824AC 26.1 x 24.0 x 41.8" 29.1 x 27.0 x 45.5" 17.8" 24.0" 52.4 lbs FRT
AL2624-2724AC 26.1 x 24.0 x 50.7" 29.1 x 27.0 x 54.7" 26.7" 24.0" 58.3 lbs FRT
AL2727-0404 27.0 x 27.0 x 7.5" 30.0 x 30.0 x 9.7" 3.6" 3.9" 30.5 lbs UPS
AL2727-0405 27.0 x 27.0 x 8.6" 30.0 x 30.0 x 10.8" 3.6" 5.0" 32.0 lbs UPS
AL2727-0504 27.0 x 27.0 x 8.9" 30.0 x 30.0 x 11.1" 5.0" 3.9" 30.6 lbs UPS
AL2727-0505 27.0 x 27.0 x 10.0" 30.0 x 30.0 x 12.2" 5.0" 5.0" 32.0 lbs UPS
AL2727-0904 27.0 x 27.0 x 12.7" 30.0 x 30.0 x 14.9" 8.8" 3.9" 33.0 lbs UPS
AL2727-0409AC/HL 27.0 x 27.0 x 12.9" 30.0 x 30.0 x 15.1" 3.6" 9.3" 34.5 lbs UPS
AL2727-0905 27.0 x 27.0 x 13.8" 30.0 x 30.0 x 16.0" 8.8" 5.0" 34.5 lbs UPS
AL2727-0509AC/HL 27.0 x 27.0 x 14.3" 30.0 x 30.0 x 16.4" 5.0" 9.3" 34.6 lbs UPS
AL2727-0414AC/HL 27.0 x 27.0 x 17.9" 30.0 x 30.0 x 20.1" 3.6" 14.3" 38.5 lbs FRT
AL2727-1404 27.0 x 27.0 x 18.0" 30.0 x 30.0 x 20.2" 14.1" 3.9" 37.1 lbs FRT
AL2727-0909AC/HL 27.0 x 27.0 x 18.1" 30.0 x 30.0 x 20.2" 8.8" 9.3" 37.0 lbs FRT
AL2727-1405 27.0 x 27.0 x 19.1" 30.0 x 30.0 x 21.3" 14.1" 5.0" 38.6 lbs FRT
AL2727-0514AC/HL 27.0 x 27.0 x 19.3" 30.0 x 30.0 x 21.4" 5.0" 14.3" 38.7 lbs FRT
AL2727-0914AC/HL 27.0 x 27.0 x 23.1" 30.0 x 30.0 x 25.2" 8.8" 14.3" 41.1 lbs FRT
AL2727-1409AC 27.0 x 27.0 x 23.4" 30.0 x 30.0 x 25.6" 14.1" 9.3" 41.1 lbs FRT
AL2727-2304 27.0 x 27.0 x 26.7" 30.0 x 30.0 x 28.8" 22.8" 3.9" 43.2 lbs FRT
AL2727-2305 27.0 x 27.0 x 27.8" 30.0 x 30.0 x 29.9" 22.8" 5.0" 43.3 lbs FRT
AL2727-1414AC/HL 27.0 x 27.0 x 28.4" 30.0 x 30.0 x 30.6" 14.1" 14.3" 45.2 lbs FRT
AL2727-2704 27.0 x 27.0 x 30.9" 30.0 x 30.0 x 33.0" 27.0" 3.9" 47.6 lbs FRT
AL2727-2705 27.0 x 27.0 x 32.0" 30.0 x 30.0 x 34.2" 27.0" 5.0" 49.0 lbs FRT
AL2727-2309AC 27.0 x 27.0 x 32.0" 30.0 x 30.0 x 34.2" 22.8" 9.3" 49.0 lbs FRT
AL2727-2709AC 27.0 x 27.0 x 36.3" 30.0 x 30.0 x 38.4" 27.0" 9.3" 51.6 lbs FRT
AL2727-2314AC 27.0 x 27.0 x 37.0" 30.0 x 30.0 x 39.2" 22.8" 14.3" 53.0 lbs FRT
AL2727-2714AC 27.0 x 27.0 x 41.3" 30.0 x 30.0 x 43.4" 27.0" 14.3" 55.5 lbs FRT
AL2818-0805 28.1 x 18.1 x 13.2" 31.1 x 21.1 x 15.4" 8.1" 5.1" 26.5 lbs UPS
AL2909-0605 28.5 x 8.5 x 11.3" 31.5 x 11.5 x 12.9" 6.0" 5.3" 15.9 lbs UPS
AL2825-1205 28.5 x 25.0 x 17.7" 31.5 x 28.0 x 19.4" 12.6" 5.1" 37.4 lbs UPS
AL2825-1605 28.5 x 25.0 x 21.6" 31.5 x 28.0 x 23.9" 16.5" 5.1" 39.0 lbs FRT
AL2825-1212AC/HL 28.5 x 25.0 x 24.9" 31.5 x 28.0 x 26.4" 12.6" 12.3" 44.0 lbs FRT
AL2825-1612AC/HL 28.5 x 25.0 x 28.8" 31.5 x 28.0 x 31.0" 16.5" 12.3" 45.6 lbs FRT
AL2914-0905 28.9 x 14.5 x 14.1" 31.9 x 17.5 x 16.0" 8.9" 5.2" 23.1 lbs UPS
AL2914-0905W 28.9 x 14.5 x 14.1" 31.9 x 17.5 x 16.0" 8.9" 5.2" 23.1 lbs UPS
AL2914-0906 28.9 x 14.5 x 15.1" 31.9 x 17.5 x 17.0" 8.9" 6.2" 24.5 lbs UPS
AL2914-0906W 28.9 x 14.5 x 15.1" 31.9 x 17.5 x 17.0" 8.9" 6.2" 24.5 lbs UPS
AL2924-0904 29.2 x 23.9 x 13.3" 32.2 x 26.9 x 15.5" 9.3" 4.0" 30.3 lbs UPS
AL3018-0402 29.8 x 17.9 x 7.1" 32.8 x 20.9 x 8.9" 4.5" 2.6" 20.4 lbs UPS
AL3018-0403 29.8 x 17.9 x 8.1" 32.8 x 20.9 x 9.9" 4.5" 3.6" 21.2 lbs UPS
AL3018-0405 29.8 x 17.9 x 9.8" 32.8 x 20.9 x 11.6" 4.5" 5.3" 21.5 lbs UPS
AL3018-0409AC/HL 29.8 x 17.9 x 13.8" 32.8 x 20.9 x 15.6" 4.5" 9.3" 27.7 lbs UPS
AL3018-0802 29.8 x 17.9 x 10.8" 32.8 x 20.9 x 12.6" 8.2" 2.6" 24.9 lbs UPS
AL3018-0802W 29.8 x 17.9 x 10.8" 32.8 x 20.9 x 12.6" 8.2" 2.6" 24.9 lbs UPS
AL3018-0803 29.8 x 17.9 x 11.8" 32.8 x 20.9 x 13.6" 8.2" 3.6" 25.7 lbs UPS
AL3018-0803W 29.8 x 17.9 x 11.8" 32.8 x 20.9 x 13.6" 8.2" 3.6" 25.7 lbs UPS
AL3018-0805W 29.8 x 17.9 x 11.8" 32.8 x 20.9 x 13.6" 8.2" 3.6" 25.7 lbs UPS
AL3018-0902 29.8 x 17.9 x 12.0" 32.8 x 20.9 x 13.8" 9.4" 2.6" 26.8 lbs UPS
AL3018-0902W 29.8 x 17.9 x 12.0" 32.8 x 20.9 x 13.8" 9.4" 2.6" 26.8 lbs UPS
AL3018-0903 29.8 x 17.9 x 13.0" 32.8 x 20.9 x 14.8" 9.4" 3.6" 27.6 lbs UPS
AL3018-0903W 29.8 x 17.9 x 13.0" 32.8 x 20.9 x 14.8" 9.4" 3.6" 27.6 lbs UPS
AL3018-0805 29.8 x 17.9 x 13.5" 32.8 x 20.9 x 15.2" 8.2" 5.3" 26.0 lbs UPS
AL3018-0905 29.8 x 17.9 x 14.7" 32.8 x 20.9 x 16.4" 9.4" 5.3" 27.8 lbs UPS
AL3018-0905W 29.8 x 17.9 x 14.7" 32.8 x 20.9 x 16.4" 9.4" 5.3" 27.8 lbs UPS
AL3018-0809AC/HL 29.8 x 17.9 x 17.5" 32.8 x 20.9 x 19.2" 8.2" 9.3" 32.2 lbs UPS
AL3018-1502 29.8 x 17.9 x 17.5" 32.8 x 20.9 x 19.3" 14.9" 2.6" 29.7 lbs UPS
AL3018-1502W 29.8 x 17.9 x 17.5" 32.8 x 20.9 x 19.3" 14.9" 2.6" 29.7 lbs UPS
AL3018-1503 29.8 x 17.9 x 18.5" 32.8 x 20.9 x 20.3" 14.9" 3.6" 30.5 lbs UPS
AL3018-1503W 29.8 x 17.9 x 18.5" 32.8 x 20.9 x 20.3" 14.9" 3.6" 30.5 lbs UPS
AL3018-0909AC/HL 29.8 x 17.9 x 18.7" 32.8 x 20.9 x 20.4" 9.4" 9.3" 33.9 lbs UPS
AL3018-1505 29.8 x 17.9 x 20.2" 32.8 x 20.9 x 21.9" 14.9" 5.3" 31.8 lbs UPS
AL3018-1505W 29.8 x 17.9 x 20.2" 32.8 x 20.9 x 21.9" 14.9" 5.3" 31.8 lbs UPS
AL3018-1509AC 29.8 x 17.9 x 24.2" 32.8 x 20.9 x 25.9" 14.9" 9.3" 37.0 lbs FRT
AL3018-2302 29.8 x 17.9 x 26.4" 32.8 x 20.9 x 28.2" 23.8" 2.6" 38.0 lbs FRT
AL3018-2303 29.8 x 17.9 x 27.4" 32.8 x 20.9 x 29.2" 23.8" 3.6" 39.0 lbs FRT
AL3018-2305 29.8 x 17.9 x 29.1" 32.8 x 20.9 x 30.8" 23.8" 5.3" 40.5 lbs FRT
AL3018-2309AC 29.8 x 17.9 x 33.1" 32.8 x 20.9 x 34.8" 23.8" 9.3" 43.0 lbs FRT
AL3018-3602W 29.8 x 17.9 x 38.9" 32.8 x 20.9 x 40.7" 36.3" 2.6" 43.0 lbs FRT
AL3018-3603W 29.8 x 17.9 x 39.9" 32.8 x 20.9 x 41.7" 36.3" 3.6" 43.8 lbs FRT
AL3018-3605W 29.8 x 17.9 x 41.6" 32.8 x 20.9 x 43.3" 36.3" 5.3" 44.3 lbs FRT
AL3018-3609W 29.8 x 17.9 x 45.5" 32.8 x 20.9 x 47.3" 36.3" 9.3" 50.3 lbs FRT
AL3022-0705 30.0 x 22.2 x 12.2" 33.0 x 25.2 x 14.0" 7.0" 5.2" 36.8 lbs UPS
AL3019-0709AC/HL 30.8 x 19.6 x 16.9" 33.8 x 22.6 x 19.7" 7.6" 9.3" 40.6 lbs UPS
AL3124-1204 31.4 x 24.4 x 15.7" 34.4 x 27.4 x 19.4" 11.9" 3.8" 30.0 lbs FRT
AL3124-1604 31.4 x 24.4 x 19.7" 34.4 x 27.4 x 23.4" 15.9" 3.8" 39.6 lbs FRT
AL3232-1412AC 32.4 x 32.4 x 26.8" 35.4 x 35.4 x 30.4" 14.5" 12.3" 68.4 lbs FRT
AL3226-1404FT 32.5 x 26.6 x 18.4" 35.5 x 29.6 x 24.3" 14.2" 4.2" 52.4 lbs FRT
AL3226-1604 32.5 x 26.6 x 20.3" 35.5 x 29.6 x 24.5" 16.1" 4.2" 52.6 lbs FRT
AL3226-1413FT/AC/HL 32.5 x 26.6 x 27.1" 35.5 x 29.6 x 32.9" 14.2" 12.9" 60.9 lbs FRT
AL3226-1613AC/HL 32.5 x 26.6 x 29.0" 35.5 x 29.6 x 33.2" 16.1" 12.9" 62.5 lbs FRT
AL3428-0604 34.0 x 27.5 x 9.9" 37.0 x 30.5 x 12.2" 6.1" 3.8" 38.9 lbs FRT
AL3428-1004 34.0 x 27.5 x 13.6" 37.0 x 30.5 x 15.8" 9.8" 3.8" 48.6 lbs FRT
AL3428-0608AC/HL 34.0 x 27.5 x 14.3" 37.0 x 30.5 x 16.6" 6.1" 8.2" 42.5 lbs FRT
AL3428-1008AC 34.0 x 27.5 x 18.0" 37.0 x 30.5 x 20.2" 9.8" 8.2" 50.6 lbs FRT
AL3428-0614AC/HL 34.0 x 27.5 x 20.5" 37.0 x 30.5 x 22.7" 6.1" 14.4" 47.5 lbs FRT
AL3428-1014AC/HL 34.0 x 27.5 x 24.2" 37.0 x 30.5 x 26.4" 9.8" 14.4" 61.5 lbs FRT
AL3428-0625AC/HL 34.0 x 27.5 x 30.9" 37.0 x 30.5 x 33.2" 6.1" 24.8" 57.0 lbs FRT
AL3428-1025AC/HL 34.0 x 27.5 x 34.6" 37.0 x 30.5 x 36.7" 9.8" 24.8" 64.1 lbs FRT
AL3418-0505 34.2 x 18.0 x 10.6" 37.2 x 21.0 x 12.4" 5.3" 5.3" 27.0 lbs UPS
AL3418-1005 34.2 x 18.0 x 15.4" 37.2 x 21.0 x 17.3" 10.1" 5.3" 30.6 lbs UPS
AL3418-1005W 34.2 x 18.0 x 15.4" 37.2 x 21.0 x 17.3" 10.1" 5.3" 30.6 lbs UPS
AL3424-0804 34.3 x 24.2 x 12.3" 37.3 x 27.2 x 14.5" 8.0" 4.3" 34.3 lbs UPS
AL3424-0805 34.3 x 24.2 x 13.3" 37.3 x 27.2 x 15.4" 8.0" 5.3" 36.8 lbs UPS
AL3424-1204 34.3 x 24.2 x 16.3" 37.3 x 27.2 x 18.5" 12.0" 4.3" 40.0 lbs UPS
AL3424-1205 34.3 x 24.2 x 17.3" 37.3 x 27.2 x 19.4" 12.0" 5.3" 42.5 lbs FRT
AL3434-1207 34.3 x 34.8 x 19.8" 37.8 x 37.8 x 22.4" 12.5" 7.3" 55.2 lbs FRT
AL3434-1228AC 34.3 x 34.8 x 41.0" 37.8 x 37.8 x 44.5" 12.5" 28.5" 60.0 lbs FRT
AL3434-2807 34.8 x 34.8 x 34.9" 37.8 x 37.8 x 38.4" 27.7" 7.3" 66.8 lbs FRT
AL3434-2828AC 34.8 x 34.8 x 56.2" 37.8 x 37.8 x 59.4" 27.7" 28.5" 72.1 lbs FRT
AL3535-1605 35.5 x 35.5 x 20.9" 38.5 x 38.5 x 24.2" 15.8" 5.1" 68.0 lbs FRT
AL3620-0504 35.9 x 19.9 x 9.0" 38.9 x 22.9 x 10.8" 5.0" 4.0" 29.0 lbs UPS
AL3620-0505 35.9 x 19.9 x 10.1" 38.9 x 22.9 x 12.3" 5.0" 5.1" 25.6 lbs FRT
AL3620-0510AC 35.9 x 19.9 x 15.2" 38.9 x 22.9 x 17.0" 5.0" 10.2" 32.4 lbs FRT
AL3620-1704 35.9 x 19.9 x 21.1" 38.9 x 22.9 x 23.3" 17.1" 4.0" 41.6 lbs FRT
AL3620-1705 35.9 x 19.9 x 22.2" 38.9 x 22.9 x 24.4" 17.1" 5.1" 43.3 lbs FRT
AL3620-1710AC 35.9 x 19.9 x 27.3" 38.9 x 22.9 x 29.5" 17.1" 10.2" 50.4 lbs FRT
AL3627-0805 35.9 x 27.0 x 12.9" 38.9 x 30.0 x 16.6" 7.8" 5.1" 43.6 lbs FRT
AL3627-1505 35.9 x 27.0 x 20.0" 38.9 x 30.0 x 23.7" 14.9" 5.1" 50.3 lbs FRT
AL3633-0405AC/HL 36.3 x 33.3 x 10.2" 39.3 x 36.3 x 11.8" 4.5" 5.7" 43.0 lbs FRT
AL3834-1605FT 38.1 x 34.1 x 21.2" 41.1 x 37.1 x 27.0" 15.8" 5.4" 71.0 lbs FRT
AL3834-1617FT/AC/HL 38.1 x 34.1 x 33.1" 41.1 x 37.1 x 38.8" 15.8" 17.3" 86.4 lbs FRT
AL3834-1628FT/AC 38.1 x 34.1 x 44.1" 41.1 x 37.1 x 49.9" 15.8" 28.3" 118.0 lbs FRT
AL4028-1608 39.8 x 27.8 x 23.7" 42.8 x 30.8 x 27.3" 15.5" 8.2" 70.0 lbs FRT
AL4028-2105 39.8 x 27.8 x 25.6" 42.8 x 30.8 x 29.2" 20.4" 5.2" 80.5 lbs FRT
AL4024-1305 39.9 x 24.3 x 18.1" 42.9 x 27.3 x 20.2" 12.8" 5.3" 50.2 lbs FRT
AL4018-1003 40.0 x 18.0 x 13.2" 43.0 x 21.0 x 14.8" 10.2" 3.0" 36.0 lbs UPS
AL4119-0704 40.8 x 19.1 x 13.7" 43.7 x 22.1 x 15.6" 8.1" 5.6" 34.0 lbs UPS
AL4021-0804 41.0 x 20.9 x 11.0" 44.0 x 23.9 x 13.7" 7.2" 3.8" 37.0 lbs UPS
AL4021-0808AC/HL 41.0 x 20.9 x 14.9" 44.0 x 23.9 x 17.6" 7.2" 7.7" 41.0 lbs UPS
AL4141-0808AC 41.0 x 41.0 x 16.4" 44.0 x 44.0 x 18.0" 8.3" 8.1" 70.0 lbs FRT
AL4141-0826AC 41.0 x 41.0 x 34.0" 44.0 x 44.0 x 35.7" 8.3" 25.8" 114.0 lbs FRT
AL4141-0836AC 41.0 x 41.0 x 43.8" 44.0 x 44.0 x 45.5" 8.3" 35.5" 123.0 lbs FRT
AL4141-0846AC 41.0 x 41.0 x 53.8" 44.0 x 44.0 x 55.5" 8.3" 45.5" 132.0 lbs FRT
AL4532-0506FT/AC 45.0 x 32.0 x 11.3" 48.0 x 35.0 x 14.5" 5.3" 6.0" 82.0 lbs FRT
AL4532-0515FT/AC/HL 45.0 x 32.0 x 20.2" 48.0 x 35.0 x 25.0" 5.3" 14.9" 82.0 lbs FRT
AL4532-1606AC 45.0 x 32.0 x 21.5" 48.0 x 35.0 x 26.0" 15.5" 6.0" 82.0 lbs FRT
AL4532-1615AC/HL 45.0 x 32.0 x 30.4" 48.0 x 35.0 x 35.1" 15.5" 14.9" 97.2 lbs FRT
AL4714-0403 46.9 x 14.1 x 7.0" 49.9 x 17.1 x 8.7" 4.0" 3.0" 26.4 lbs UPS
AL4714-0503 46.9 x 14.1 x 8.3" 49.9 x 17.1 x 9.9" 5.3" 3.0" 27.5 lbs UPS
AL4714-0405 46.9 x 14.1 x 9.3" 49.9 x 17.1 x 10.9" 4.0" 5.3" 27.1 lbs UPS
AL4714-0505 46.9 x 14.1 x 10.5" 49.9 x 17.1 x 12.2" 5.3" 5.3" 29.5 lbs UPS
DL4824-1404AC 48.0 x 24.0 x 17.8" 51.5 x 27.5 x 21.4" 13.9" 3.9" 60.0 lbs FRT
DL4824-1408AC 48.0 x 24.0 x 22.0" 51.5 x 27.5 x 25.7" 13.9" 8.1" 64.5 lbs FRT
AL4824-1404 48.6 x 24.6 x 17.7" 51.6 x 27.6 x 21.4" 13.8" 3.9" 60.0 lbs FRT
AL4824-1604 48.6 x 24.6 x 19.7" 51.6 x 27.6 x 23.4" 15.8" 3.9" 57.3 lbs FRT
AL4824-1408 48.6 x 24.6 x 21.9" 51.6 x 27.6 x 25.6" 13.8" 8.1" 64.5 lbs FRT
AL4824-1608 48.6 x 24.6 x 23.9" 51.6 x 27.6 x 27.6" 15.8" 8.1" 63.8 lbs FRT
AL4915-1105 49.0 x 14.8 x 16.3" 52.0 x 17.8 x 18.4" 11.0" 5.3" 40.0 lbs UPS
AL5040-1204 50.1 x 40.0 x 15.9" 53.1 x 43.0 x 19.1" 12.1" 3.8" 90.0 lbs FRT
AL5040-1212AC 50.1 x 40.0 x 24.0" 53.1 x 43.0 x 27.2" 12.1" 11.9" 103.0 lbs FRT
AL5135-0718FT 51.0 x 35.0 x 25.2" 54.0 x 38.0 x 32.0" 6.8" 18.4" 98.2 lbs FRT
AL5240-1138AC/HL 52.0 x 40.0 x 49.0" 55.0 x 43.0 x 52.7" 11.0" 38.0" 143.1 lbs FRT
AL5424-2306FT/AC 53.9 x 23.9 x 28.9" 56.9 x 26.9 x 33.8" 22.8" 6.1" 104.3 lbs FRT
AL5430-3006AC 53.9 x 29.8 x 35.9" 56.9 x 32.8 x 39.6" 29.9" 6.1" 114.0 lbs FRT
AL5415-1026 54.0 x 15.9 x 35.4" 57.0 x 18.9 x 37.5" 10.0" 25.4" 72.0 lbs FRT
AL5430-0418AC 55.5 x 31.3 x 24.9" 58.4 x 33.9 x 26.4" 6.4" 18.5" 73.0 lbs FRT
AL5545-0605AC 55.5 x 45.5 x 13.2" 58.5 x 48.5 x 15.0" 8.1" 5.1" 102.0 lbs FRT
AL5545-2305AC 55.5 x 45.5 x 27.9" 58.5 x 48.5 x 31.6" 22.8" 5.1" 145.3 lbs FRT
AL5545-0623AC 55.5 x 45.5 x 30.7" 58.5 x 48.5 x 33.0" 8.1" 22.6" 145.0 lbs FRT
AL5545-2323AC 55.5 x 45.5 x 45.4" 58.5 x 48.5 x 49.1" 22.8" 22.6" 179.0 lbs FRT
AL5616-0604 56.4 x 16.3 x 10.1" 59.4 x 19.3 x 12.8" 5.9" 4.2" 42.4 lbs FRT
AL5733-0906FT/AC 56.9 x 32.8 x 15.1" 59.9 x 35.8 x 25.6" 9.1" 6.0" 85.0 lbs FRT
AL5733-0916FT/AC 56.9 x 32.8 x 25.1" 59.9 x 35.8 x 35.6" 9.1" 16.0" 123.4 lbs FRT
AL5834-0128FT/AC/HL 58.3 x 34.3 x 29.5" 61.3 x 37.3 x 32.9" 1.6" 27.9" 126.0 lbs FRT
AL5834-0728FT/AC/HL 58.3 x 34.3 x 35.5" 61.3 x 37.3 x 38.9" 7.6" 27.9" 138.9 lbs FRT
AL5834-0140FT/AC/HL 58.3 x 34.3 x 41.6" 61.3 x 37.3 x 45.3" 1.6" 40.0" 145.0 lbs FRT
AL5834-0740FT/AC/HL 58.3 x 34.3 x 47.6" 61.3 x 37.3 x 51.2" 7.6" 40.0" 140.0 lbs FRT
AL5824-1119AC 58.6 x 24.1 x 30.2" 61.6 x 27.1 x 33.9" 11.0" 19.2" 76.5 lbs FRT
AL5910-0604 59.1 x 9.9 x 10.3" 62.1 x 12.9 x 12.3" 6.2" 4.1" 31.6 lbs UPS
AL5924-1018AC 59.3 x 24.3 x 28.3" 62.3 x 27.3 x 30.3" 10.1" 18.2" 74.0 lbs FRT
BL6752-0805AC/HL 67.4 x 51.9 x 13.2" 70.4 x 54.9 x 18.7" 8.0" 5.1" 145.0 lbs FRT
AL6815-1005 68.0 x 15.3 x 15.3" 71.0 x 18.3 x 17.1" 10.1" 5.2" 58.5 lbs FRT
AL6912-1003 69.4 x 12.0 x 14.1" 72.4 x 15.0 x 16.3" 10.5" 3.6" 42.0 lbs FRT
AL7007-0403AC 70.3 x 7.0 x 7.0" 73.3 x 10.0 x 9.8" 4.0" 3.0" 30.0 lbs UPS
AL7819-0805 78.9 x 19.4 x 13.3" 80.8 x 22.4 x 15.0" 8.3" 5.0" 60.8 lbs FRT
AL7819-0808AC 78.9 x 19.4 x 16.3" 80.8 x 22.4 x 18.0" 8.3" 8.0" 61.8 lbs FRT
BL8024-3009AC 80.4 x 24.4 x 39.2" 84.4 x 28.4 x 43.8" 30.1" 9.1" 159.5 lbs FRT
BL8240-1623FT/AC 81.8 x 40.0 x 38.9" 85.8 x 44.0 x 48.1" 16.1" 22.8" 229.2 lbs FRT
BL8232-0705AC 81.9 x 31.9 x 12.4" 85.9 x 35.9 x 16.8" 7.3" 5.1" 122.3 lbs FRT
BL8232-0905AC 81.9 x 31.9 x 14.1" 85.9 x 35.9 x 18.6" 9.0" 5.1" 128.0 lbs FRT
BL8537-2906 85.2 x 37.7 x 35.2" 89.2 x 41.7 x 39.6" 29.2" 6.0" 190.0 lbs FRT
BL9053-1035AC 90.0 x 53.0 x 45.6" 94.0 x 57.0 x 50.0" 10.3" 35.3" 278.0 lbs FRT
BL9024-1113FT/AC 91.0 x 24.2 x 24.9" 95.0 x 28.2 x 33.3" 11.6" 13.3" 147.2 lbs FRT
BL9836-1105AC 97.8 x 35.9 x 16.1" 101.8 x 39.9 x 20.8" 11.0" 5.1" 190.0 lbs FRT

Parting-Line Width & Hardware Notes

Parting-line width key: AL = 1.5", BL = 2.0", CL = 1.0", DL = 1.75".

Pelican-Hardigg™ Single Lid cases come standard with plastic handles and zinc-plated latches. Zinc handles or stainless steel handles and latches are also available depending on the case configuration.

Dimensions are approximate. For critical fit requirements or custom foam layouts, contact Cases2Go for case selection and configuration assistance.

Industry-Leading Rotomolded Transport Cases

Pelican-Hardigg™ single lid cases are manufactured using advanced polyethylene rotomolding processes that create strong, impact-resistant shells. These shipping cases are engineered to withstand demanding shipping conditions while maintaining a lightweight and manageable design.

With hundreds of available sizes, these cases can accommodate a wide range of equipment, including computers, electronics, tools, instruments, and specialized systems.

Built to ATA & MIL-SPEC Standards

Pelican-Hardigg™ cases are designed to meet strict ATA and MIL-SPEC requirements for shipping and transport. This ensures reliable protection for equipment that must endure repeated handling, transportation, and deployment in harsh environments.

  • ATA-rated transport case construction
  • MIL-SPEC compliant options available
  • Engineered for repeated shipping and reuse

Durable Design with Advanced Features

Every Pelican-Hardigg™ single lid case is built with features that enhance strength, usability, and long-term durability. These design elements help protect equipment while improving ease of handling and transport.

  • Rotomolded polyethylene construction
  • Patented Comfort Grip handles
  • Molded-in interlocking ribs for stacking strength
  • Recessed hardware for protection during transport
  • Tongue-and-groove gasketed sealing system
  • Positive anti-shear locking design
  • Uniform molded-in color for long-term durability

Ideal Applications for Pelican Hardigg Single Lid Cases

These rugged transport cases are used across a wide range of industries where equipment protection is critical:

  • Industrial and commercial equipment shipping
  • Military and government applications
  • Scientific and laboratory equipment transport
  • Medical devices and instruments
  • Audio, video, and demo equipment
  • Tools, electronics, and field systems

Custom Foam & Integrated Case Solutions from Cases2Go

Cases2Go specializes in customizing Pelican-Hardigg™ single lid cases with engineered foam interiors and integrated equipment solutions. We design protective packaging systems that secure your equipment, improve organization, and ensure safe transport.

Not Sure Which Single Lid Case Fits Your Application?

Talk to a Cases2Go specialist

If you’re unsure which rotomolded single lid shipping case size or configuration is the best fit for your equipment, our experienced team can help review dimensions, protection requirements, transport conditions, and custom foam needs.

Request a Quote Call 813-513-9910
SKB iSeries injection molded waterproof casesShop SKB Cases
You May Also Like

SKB Shipping & Carrying Cases

Looking for a Pelican™ case alternative? SKB Cases offer a full lineup of rugged shipping cases, carrying cases, and protective transport solutions for equipment of every size. Many SKB models cross-reference popular Single Lid and Storm Case™ sizes, making it easy to find a comparable case that fits your gear, budget, and use case.

  • Conforms to MIL-STD-810 & ATA 300 Cat 1
  • Wide selection of shipping, carrying & rackmount cases
  • Injection molded, rotomolded, and ATA-rated options
  • Trusted by military, broadcast, music & industrial users
  • Backed by SKB's lifetime warranty
  • Proudly made in the USA
