SKB 3R Series Waterproof Shipping Cases | Airtight & Watertight Cases

The SKB Cases 3R Series is a heavy-duty line of rotomolded waterproof shipping cases engineered for mission-critical transport and long-term equipment protection. Manufactured by SKB Cases, the 3R Series is molded from linear low-density polyethylene (LLDPE) that is impact resistant, UV stabilized, and built to withstand the most demanding shipping, transit, and deployment environments.

Designed to meet or exceed MIL-STD-810H and MIL-C-4150J requirements, SKB 3R Series cases are fully airtight and watertight, featuring a gasket-sealed design, stainless steel latches and hinges, integrated lid straps, and an automatic ambient pressure equalization valve. These cases are also ATA 300 Category 1 rated and IP67 ingress protection certified, making them ideal for military, government, industrial, and commercial applications where reliability is non-negotiable—backed by engineered transport case solutions developed for mission-critical environments.

Available SKB 3R Series Case Sizes & Configurations

The 3R Series lines of shipping cases are available with an empty interior, cubed foam layers, layered foam, padded dividers or complete custom foam interiors. Many case sizes are also available with pull handle with wheels, depending on the size selected. Select sizes are also available with TSA recognized and accepted locking latches in place of stainless steel pad-lockable latches.

View Size Charts


Products 97-97 of 97
Show

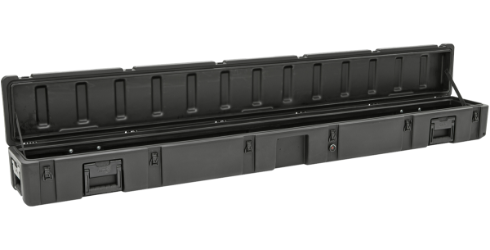

SKB 3R8608-8B-EW (Open) from Cases2Go
Price: $864.99
View Full Product
3R8608-8B-EW | SKB Cases | R Series Waterproof Utility Case - Wheeled
3R8608-8B-EW
Availability: Built To Order
Item #: RIS-3R8608-8B-EW -

SKB Cases | Rotomolded Waterproof Shipping Utility Case (Empty) | 3R8608-08B-EW 86.00" x 8.00" x 8.00" Inside Dimensions The SKB 3R8608-8B-EW rotomolded Mil-Standard shipping case features a LLDPE polyethylene impact resistant shell with gasketed, watertight design (MIL-C-4150J). Case also feature lids with stainless steel hinge, spring-loaded rubber over-molded handles, recessed, black powder coated stainless steel twist latches, and an automatic ambient pressure equalization valve. SKB R...

SKB Cases Million Mile Guaranty

SKB Cases are fully warranted against defects in materials and craftsmanship for the life of the hard case to the original owner. That means, if your case breaks, SKB Cases will repair or replace it at no cost to you for as long as you own the case.

SKB 3R rSeries Mil-Standard Airtight & Waterproof Shipping Case Sizes

Model # Interior (L x W x H) Exterior (L x W x H) Lid Depth Base Depth Weight Empty Pull Handle / Wheels
3R1209-26 12.00 x 9.00 x 26.75" 14.60 x 13.30 x 29.00" 2.75" 24.00" 16.98 lbs
3R1815-13 19.13 x 15.63 x 12.75" 22.25 x 18.75 x 14.75" 2.25" 10.25" 18.35 lbs
3R1919-14 19.00 x 19.00 x 14.57" 22.81 x 22.81 x 17.00" 3.19" 11.38" 19.6 lbs X
3R2016-17 20.50 x 16.46 x 17.73" 23.50 x 19.50 x 21.26" 2.63" 15.00" 26 lbs
3R2216-15 22.19 x 16.25 x 15.13" 25.25 x 19.25 x 16.87" 3.13" 12.00" 17.7 lbs
3R2217-10 22.00 x 17.00 x 10.50" 25.50 x 20.50 x 12.00" 3.13" 7.37" 20.46 lbs X
3R2222-12 22.00 x 22.00 x 12.13" 25.45 x 25.45 x 13.61" 3.13" 9.00" 25.76 lbs X
3R2222-20 22.00 x 22.00 x 20.07" 25.50 x 25.50 x 23.00" 3.57" 16.50" 28.15 lbs
3R2423-17 24.00 x 23.00 x 17.23" 27.75 x 26.58 x 18.74" 3.75" 13.48" 30.81 lbs X
3R2424-24 24.38 x 24.31 x 23.86" 28.19 x 28.25 x 26.57" 3.32" 20.42" 35.18 lbs
3R2523-26 25.75 x 23.25" x 26.5" 28.75 x 26.25 x 29.5" 3.00" 23.50" 47.95 lbs
3R2614-20 26.75" x 14.50 x 19.75" 29.67 x 17.40 x 21.38" 3.25" 16.50" 26.93 lbs
3R2621-10 26.32 x 21.25 x 10.03" 29.25 x 24.25 x 14.38" 1.81" 8.00" 33 lbs X
3R2624-11 26.08 x 24.08 x 11.1" 29.25 x 27.25" x 16.26" 3.00" 8.00" 32.36 lbs
3R2624-13 26.08 x 24.08 x 13.1" 29.25 x 27.25 x 18.26" 5.00" 8.00" 30.95 lbs
3R2624-15 26.08 x 24.08 x 15.1" 29.25 x 27.25 x 20.26" 3.00" 12.00" 33.26 lbs
3R2624-17 26.08 x 24.08 x 17.1" 29.25 x 27.25 x 22.26" 5.00" 12.00" 32.4 lbs
3R2624-20 26.08 x 24.08 x 20.1" 29.25 x 27.25 x 25.16" 12.00" 8.00" 35.02 lbs
3R2624-24 26.08 x 24.08 x 24.1" 29.25 x 27.25 x 29.16" 12.00" 12.00" 39.63 lbs
3R2727-13 27.25 x 27.25 x 13.00" 30.25 x 30.25 x 16.00" 3.00" 10.00" 37.91 lbs X
3R2727-18 27.00 x 27.00 x 18.00" 31.00 x 30.75 x 20.53" 3.63" 14.37" 38.07 lbs
3R2727-27 27.00 x 27.00 x 27.00" 31.00 x 30.75 x 29.53" 3.63" 23.37" 46.45 lbs
3R2817-10 29.00 x 17.75 x 10.75" 31.70 x 21.24 x 12.14" 2.12" 8.63" 22.43 lbs X
3R3018-13 30.06 x 18.14 x 13.10" 31.25 x 21.25 x 16.24" 5.00" 8.00" 29.26 lbs X
3R3018-17 30.06 x 18.14 x 17.10" 31.25 x 21.25 x 20.24" 9.00" 8.00" 30.14 lbs X
3R3018-20 30.06 x 18.14 x 20.10" 31.25 x 21.25 x 23.24" 5.00" 15.00" 32.64 lbs X
3R3018-24 30.06 x 18.14 x 24.10" 31.25 x 21.25 x 27.24" 9.00" 15.00" 33.81 lbs X
3R3025-15 30.24 x 25.24 x 15.25" 33.66 x 28.75 x 16.75" 3.88" 11.37" 39.74 lbs X
3R3214-15 32.00 x 14.50 x 16.30" 35.23 x 17.60 x 17.87" 3.64" 12.66" 30.91 lbs X
3R3221-7 31.88 x 21.00 x 7.13" 35.00 x 24.00 x 9.00" 2.25" 4.88" 25.42 lbs X
3R3426-19 34.25 x 26.25 x 19.00" 38.00 x 29.50 x 23.26" 2.75" 16.25" 54.48 lbs X
3R3517-14 35.50 x 17.00 x 14.50" 37.50 x 20.25 x 15.90" 3.00" 11.50" 27.81 lbs
3R3620-24 36.25 x 20.63 x 24.02" 39.31 x 23.63 x 27.13" 3.88" 20.00" 51.49 lbs
3R3633-9 36.00 x 33.00 x 9.00" 39.00 x 36.00 x 12.2" 3.00" 6.00" 53 lbs
3R3722-20 37.50 x 22.25 x 20.00" 40.50 x 25.25 x 23.25" 2.62" 17.38" 46 lbs X
3R3821-7 38.50 x 21.25 x 7.05" 42.30 x 24.30 x 10.00" 2.15" 4.90" 40.51 lbs X
3R3834-23 38.87 x 34.75 x 22.97" 42.00 x 37.75 x 26.63" 4.81" 18.06" 70.07 lbs
3R4024-18 40.25 x 24.25 x 18.00" 44.19 x 28.00 x 20.50" 3.50" 14.50" 51.89 lbs
3R4024-24 40.06 x 24.13 x 24.26" 43.75 x 27.88 x 26.38" 3.76" 20.5" 64.71 lbs
3R4035-5 39.70 x 35.60 x 5.25" 43.00 x 38.38 x 6.75" 2.30" 2.95" 34.85 lbs
3R4222-14 41.75 x 22.00 x 14.86" 45.25 x 25.00 x 16.40" 7.88" 6.98" 49.92 lbs
3R4222-14W 41.75 x 22.00 x 14.86" 45.25 x 25.00 x 16.40" 7.88" 6.98" 49.92 lbs X
3R4222-15 42.00 x 22.00 x 14.93" 45.13 x 25.14 x 18.20" 3.45" 11.48" 54.18 lbs
3R4222-15W 42.00 x 22.00 x 14.93" 45.13 x 25.14 x 18.20" 3.45" 11.48" 54.18 lbs X
3R4222-24 42.00 x 22.00 x 24" 45.13 x 25.14 x 27.2" 3.40" 20.60" 59.84 lbs
3R4222-24W 42.00 x 22.00 x 23.93" 45.00 x 25.25 x 27.13" 3.38" 20.33" 60.27 lbs X
3R4238-20 42.25 x 38.25 x 20.25" 45.25 x 41.25 x 23.2" 3.00" 17.25" 77.22 lbs
3R4416-13W 44.07 x 16.51 x 13.41" 47.24 x 19.69 x 15.75" 3.79" 9.52" 35.14 lbs X
3R4416-24 44.38 x 16.63 x 24.04" 47.63 x 19.75 x 27.25" 3.88" 20.06" 38.75 lbs X
3R4417-8 44.00 x 17.00 x 8.00" 46.00 x 21.00 x 9.62" 3.00" 5.00" 25.41 lbs X
3R4436-24 44.38 x 36.25 x 24.05" 47.38 x 39.25 x 27.00" 3.88" 20.00" 73.26 lbs X
3R4436-36 44.38 x 36.19 x 35.97" 47.50 x 39.38 x 39.00" 3.88" 32.00" TBA X
3R4530-24 45.00 x 30.00 x 24.00" 49.00 x 34.00 x 26.25" 4.00" 20.00" 65.07 lbs
3R4714-10 48.13 x 14.88 x 10.47" 50.88 x 17.50 x 12.13" 5.12" 5.25" 29.16 lbs
3R4714-10W 48.13 x 14.88 x 10.47" 50.88 x 17.50 x 12.13" 5.12" 5.25" 29.16 lbs X
3R4824-18 48.00 x 24.00 x 18.00" 51.00 x 27.00 x 21.20" 3.00" 15.00" 61.69 lbs
3R4909-5 49.00 x 9.00 x 5.75" 51.00 x 12.50 x 7.00" 2.375" 3.375" 19.67 lbs
3R5020-14 50.50 x 20.31 x 13.88" 53.50 x 23.19 x 17.00" 2.69" 11.00" 55.2 lbs X
3R5030-24 49.38 x 30.00 x 24.00" 53.26 x 34.00 x 26.25" 5.00" 20.00" 71.87 lbs
3R5040-24 50.08 x 40.08 x 24.00" 53.25 x 43.25 x 27.6" 12.00" 12.00" 90 lbs
3R5123-21 51.50 x 23.50 x 21.5" 55.00 x 27.00 x 24.00" 10.75" 10.75" 68.65 lbs
3R5212-7 52.00 x 12.00 x 8.00" 54.00 x 15.50 x 9.125" 3.00" 5.00" 22.17 lbs X
3R5530-20 55.25 x 30.25 x 20.00" 58.25 x 33.25 x 23.25" 3.00" 17.00" 77.26 lbs
3R6029-31 60.00 x 29.00 x 31.3" 63.00 x 32.00 x 34.80" 22.30" 9.00" 98.72 lbs X
3R6029-40 60.75 x 29.25 x 40.00" 63.75 x 32.25 x 43.75" 31.00" 9.00" 110.67 lbs X
3R6218-10 63.12 x 18.5 x 10.00 66.63 x 22.50 x 13.00" 3.00" 7.00" 38.48 lbs X
3R6223-10 63.25 x 23.63 x 10.00" 67.50 x 27.37 x 12.75" 3.00" 7.00" 49.29 lbs X
3R6416-8 65.13 x 16.75 x 8.08" 67.92 x 20.38 x 11.13" 2.06" 5.95" 39.27 lbs X
3R6820-20 68.00 x 20.00 x 20.50" 72.00 x 24.00 x 24.00" 3.50" 17.00" 73.12 lbs X
3R7408-8 74.00 x 8.00 x 8.00" 77.30 x 11.00 x 9.40" 2.50" 5.50" 30.91 lbs X
3R7532-27 75.00 x 32.5 x 27.55" 78.05 x 35.45 x 31.03" 19.30" 8.25" 109.45 lbs X
3R7626-20 76.00 x 26.00 x 20.11" 79.22 x 29.22 x 23.61" 5.01" 15.00" 91.38 lbs X
3R8608-8 86.00 x 8.00 x 8.00" 89.00 x 11.00 x 9.40" 1.90" 6.10" 34.71 lbs X

Check with a Cases2Go specialist for the complete lineup of case styles, sizes, and customization options.

Discounts Available to Qualified Buyers

Planning a bulk order or recurring purchase of SKB 3R Series waterproof shipping cases? Cases2Go offers volume pricing and buyer discounts for qualified customers, supporting government, commercial, and integration programs. Our production-ready capabilities allow us to fulfill larger orders while maintaining consistent quality, availability, and delivery timelines.

Request A Quote

SKB 3R Series Waterproof Shipping Case Size Chart Page 1SKB 3R Series Waterproof Shipping Case Size Chart Page 2

Not Sure Which SKB 3R Series Case Fits Your Application?

Talk to a Cases2Go specialist

If you’re unsure which 3R Series size or configuration is the best fit for your equipment, our experienced team is here to help. We’ll review dimensions, protection requirements, and transport conditions to recommend the most appropriate SKB 3R Series case—backed by 40 years of industry experience.
