NSN 4935-01-652-4379 SKB 3SKB-R06U20W 6U rolling shock rackmount case

NSN 4935-01-652-4379 Rolling Shock Rackmount Case

National Stock Number 4935-01-652-4379 is associated with the SKB 3SKB-R06U20W 6U rolling shock rackmount case. This specialized transport case provides a 20-inch-deep shock-isolated rack frame for protecting compatible 19-inch rack-mounted electronics and equipment.

The SKB 3SKB-R06U20W uses elastomeric shock absorbers at all eight corners to help control shock and vibration along three axes. The standard shockmount configuration supports a payload range of approximately 40 to 150 pounds when the equipment is properly installed and the load is correctly distributed.

The internal rack provides six vertical rack units and threaded front and rear steel rails. The rail-to-rail depth is approximately 19.75 inches, while the usable space from the front rail to the back lid is approximately 22.75 inches. Standard 10-32 rack-mounting hardware is included.

The rolling rack case is constructed with a rugged rotomolded exterior shell and removable gasket-protected front and rear lids. Built-in roller-blade-style wheels and a retractable pull handle improve mobility, while oversized side handles provide additional lifting and handling positions.

The SKB 3SKB-R06U20W is suitable for military electronics, communications equipment, test systems, audiovisual components, broadcast equipment, control systems, computing hardware, instrumentation, and other sensitive rack-mounted equipment requiring protection during transportation, storage, and field deployment.

Confirm the required NSN, manufacturer part number, rack-unit requirement, equipment depth, total payload weight, center of gravity, connector clearance, cooling requirements, and procurement specifications before ordering.

NSN 4935-01-652-4379 Rackmount Case Information

National Stock Number 4935-01-652-4379
Item Name Test Set Case
FSC 4935 – Guided Missile Maintenance, Repair, and Checkout Specialized Equipment
Manufacturer SKB Cases
Manufacturer Part Number 3SKB-R06U20W
Rack Capacity 6U
Standard Payload Range Approximately 40 to 150 pounds

Products 1-1 of 1
Show

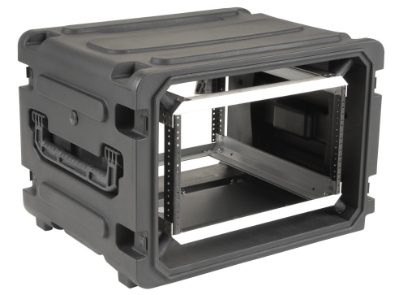

SKB 3SKB-R06U20W (Open, Left) from Cases2Go
Price: $1,094.99
View Full Product
3SKB-R06U20W | SKB 6U Rolling Shock Rack Case
3SKB-R06U20W
Availability: Built To Order
Item #: RIS-3SKB-R06U20W -

SKB Cases | 20" Deep 6U Roto Shock Rack | 3SKB-R06U20W The 3SKB-R06U20W Rolling Shockmount Case incorporates black powder coated twist latches with locking loops and a low profile injection molded pull handle with a 20 inch deep tough rotomolded shell. The molded design provides extra stiffness in the lids and sides and allows for secure stacking. Rack depth front to rear rail is 20 inches and each lid is 2-1/4 inches deep. Rack rails are pre-threaded for standard 10-32 hardware and the...

Rotomolded Rack Case for Transportation and Deployment

The tough rotomolded exterior helps protect the internal rack and mounted equipment during repeated handling, transportation, storage, and deployment. Molded reinforcement adds stiffness to the lids and sides while supporting secure case stacking.

Black powder-coated twist latches secure the front and rear lids. Locking loops allow compatible customer-supplied locks or security devices to be added when access control is required.

An ambient pressure-relief valve helps equalize pressure changes that can occur during changes in altitude or transportation conditions. The case is described as shock and water resistant but should not be treated as a waterproof enclosure unless the complete configured system has been evaluated for the required environmental standard.

Rackmount Integration and Configuration Options

Cases2Go provides equipment integration services for applications requiring rack-mounted electronics, shelves, cable management, connection panels, power distribution, ventilation, accessory storage, labeling, or other application-specific components.

Available rack options may include horizontal support rails, additional rack hardware, accessory pockets, shipping label plates, caster storage bags, load-spreader components, and heavy-payload shockmount configurations. Options should be selected according to the equipment weight, depth, mounting method, operating requirements, and transportation environment.

Provide the equipment manufacturer and model, rack-unit requirement, chassis depth, total weight, center of gravity, mounting points, connector locations, ventilation requirements, cable-routing plan, power requirements, and available drawings. Cases2Go can help configure a rackmount transport system that protects the equipment while supporting field operation and deployment.

Need NSN 4935-01-652-4379?

Cases2Go can supply the SKB 3SKB-R06U20W 6U rolling shock rackmount case or help configure a compatible protective rack system.

Talk to a Cases2Go Rackmount Case Specialist

Request an NSN Case Quote Call 813-513-9910
