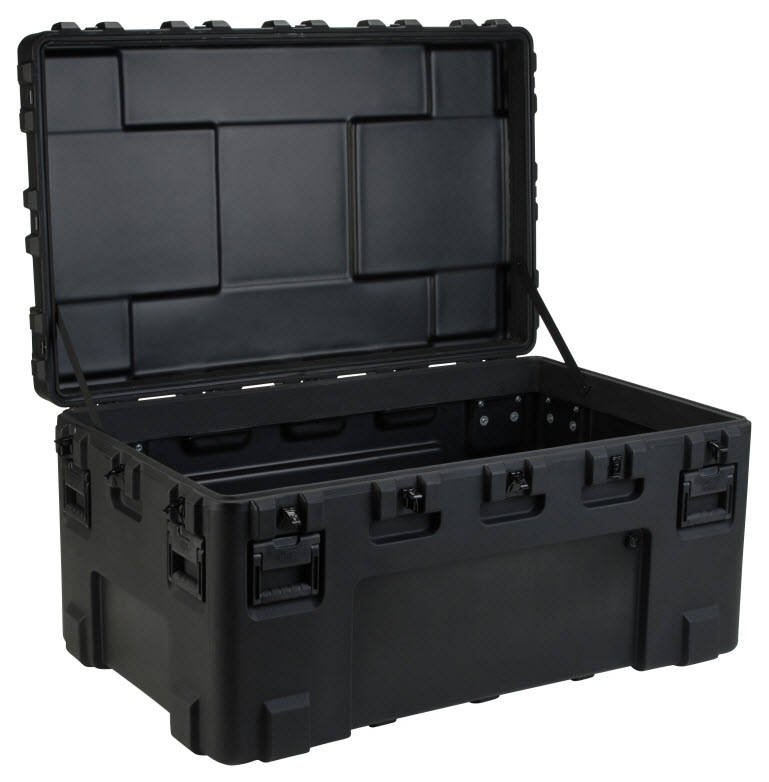

NSN 5140-01-564-3734 SKB 3R5030-24B-E rotomolded tool and accessories case with empty interior

NSN 5140-01-564-3734 Tool and Accessories Case

National Stock Number 5140-01-564-3734 is associated with the black SKB 3R5030-24B-E rotomolded tool and accessories case with an empty interior. The NSN is classified under Federal Supply Class 5140 for tool and hardware boxes.

The SKB 3R5030-24B-E provides approximately 50 × 30 × 24 inches of interior space. Its large-capacity design is suitable for transporting and storing tools, repair equipment, maintenance components, test instruments, field-service kits, replacement parts, cables, accessories, and other bulky or mission-critical equipment.

The protective shell is rotationally molded from impact-resistant, UV-stabilized LLDPE polyethylene. Its gasket-sealed construction provides IP67-rated waterproof and dust-tight protection for equipment exposed to freight handling, storage, repeated deployment, field operations, and demanding transportation environments.

Standard features include recessed black powder-coated stainless steel twist latches, a stainless steel hinge, spring-loaded rubber over-molded handles, and an automatic ambient pressure equalization valve. The rugged shell is resistant to UV exposure, solvents, corrosion, fungus, and impact damage.

This model does not include built-in wheels or casters. Compatible edge wheels, locking casters, forklift risers, lifting hardware, label plates, humidity indicators, locking components, and other SKB rSeries accessories may be added when required by the handling, storage, or deployment application.

The empty interior can be loaded directly, fitted with customer-supplied tool organization or mounting components, or configured with a precision-engineered custom foam insert. Cases2Go can develop a protective interior around the equipment’s dimensions, weight, fragility, orientation, accessories, and operating requirements.

Confirm the required NSN, manufacturer part number, usable interior dimensions, payload requirements, mobility accessories, and procurement specifications before ordering.

NSN 5140-01-564-3734 Case Information

National Stock Number 5140-01-564-3734
Item Name Case, Tool and Accessories
FSC 5140 – Tool and Hardware Boxes
Manufacturer SKB Cases
Original Case Series SKB 3R Series
Original Case Model 3R5030-24B-E
Case Color Black
Interior Configuration Empty interior
Environmental Protection IP67-rated waterproof, airtight, and dust-tight construction
Performance Standards ATA Specification 300, Category 1 and MIL-STD-810H

Products 1-1 of 1
Show
SKB 3R5030-24B-E (Open Left) from Cases2Go
Price: $1,339.99
View Full Product
3R5030-24B-E | SKB Rotomolded Shipping Case
3R5030-24B-E
Availability: Built To Order
Item #: RIS-3R5030-24B-E -

SKB Cases | Rotomolded Shipping Case | 3R5030-24B-E 49.38" x 30.00" x 24.00" Inside Dimensions The SKB 3R5030-24B-E rotomolded Mil-Standard shipping case features a LLDPE polyethylene impact resistant shell with gasketed, watertight design (MIL-C-4150J). Case also feature lids with stainless steel hinge (removable lid available upon request), spring-loaded rubber over-molded handles, recessed, black powder coated stainless steel twist latches, and an automatic ambient pressure equalization...

Large Tool and Equipment Storage Case

The SKB 3R5030-24B-E combines a 49.38-inch interior length with 30 inches of width and 24 inches of total depth. This large-capacity configuration can accommodate maintenance tools, repair equipment, test instruments, field-service components, replacement parts, cables, organized tool sets, and other bulky equipment.

The 20-inch-deep base provides substantial storage capacity, while the 4-inch lid allows access to the complete interior when the case is open. The empty configuration gives users flexibility to organize the payload around the application instead of working within a predetermined foam layout.

The case weighs approximately 69.50 pounds before tools or equipment are loaded. Users should evaluate the anticipated loaded weight, weight distribution, lifting method, personnel requirements, and transportation conditions before deployment.

Protection for Tools and Accessories

NSN 5140-01-564-3734 is identified as a tool and accessories case. Tool kits and field-service equipment can include components with significantly different sizes, weights, shapes, and protection requirements. Loose or poorly supported items may move, collide, or place concentrated loads on the case interior during transportation.

The appropriate interior should be selected according to the tools’ weight, shape, fragility, center of gravity, frequency of use, required clearances, and accessory layout. Custom foam, tool-control cutouts, removable trays, dividers, mounting components, label plates, and locking hardware may be incorporated when required by the application.

Because of the case’s large dimensions, users should also consider how the loaded case will be lifted, carried, stored, stacked, and positioned inside vehicles or shipping systems. Optional edge wheels, locking casters, and forklift risers can improve handling when the case carries a heavy payload.

Custom Foam for SKB 3R5030-24 Cases

Cases2Go can provide precision-engineered custom foam interiors for the SKB 3R5030-24 and other compatible protective cases.

Provide the equipment or tool list, make and model information, payload dimensions, weight, fragility, orientation, required clearances, accessory layout, and any available CAD drawings or photographs. Our team can design an organized interior that supports the contents, limits movement, separates components, and improves protection during shipping, storage, and field deployment.

Cases2Go can also provide equipment integration services when the case requires mounted components, panels, wiring, power distribution, communications hardware, or other application-specific systems.

Need NSN 5140-01-564-3734?

Cases2Go can supply the SKB 3R5030-24B-E empty case or configure a compatible tool and accessories case with precision-engineered custom foam, tool organization, mobility accessories, or an integrated equipment system. Include the NSN, required quantity, tool or equipment specifications, interior requirements, loaded weight, handling requirements, delivery requirements, procurement documentation, and any approved-equal specifications with your request.
