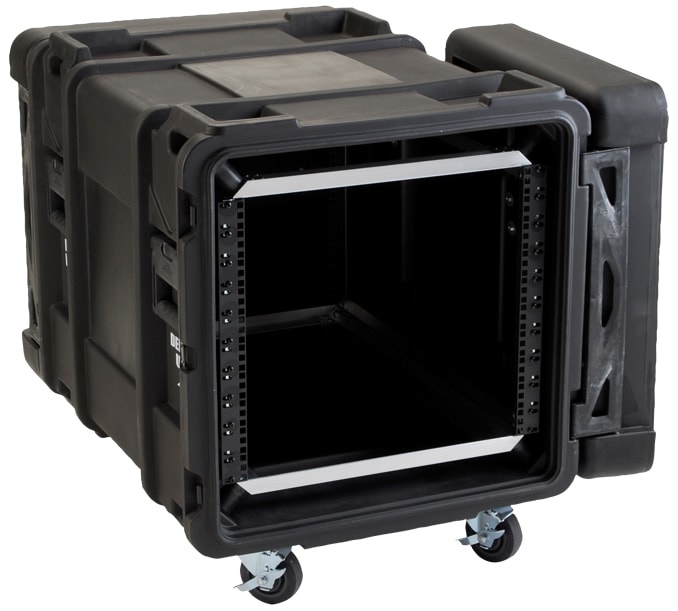

NSN 8145-01-578-4827 Rolling Shock Rackmount Case

Rotomolded Rack Case for Transportation and Deployment

The rotomolded exterior shell helps protect the isolated rack system during repeated handling, transportation, storage, and deployment. The 10U internal rack provides approximately 17.5 inches of usable vertical mounting height and approximately 29 inches between the front and rear equipment rails.

Each lid provides approximately 4.5 inches of internal depth. The available distance from either equipment rail to the opposite lid is approximately 34 inches, providing additional clearance for compatible connectors, cable bends, controls, handles, strain relief, and other equipment projections.

The isolated inner chassis combines a high-strength aluminum-alloy frame with 11-gauge hot-rolled carbon steel equipment rails manufactured to EIA-310 standards. The rails are pre-threaded for standard 10-32 rack hardware, and compatible mounting screws are included.

Recessed, field-replaceable latches secure the front and rear lids while reducing unnecessary projections from the exterior. The case measures approximately 42 × 27.25 × 27 inches and has an empty product weight of approximately 94.38 pounds.

An automatic ambient pressure-relief valve helps equalize pressure changes caused by altitude and transportation conditions. Gasketed lids and water-resistant construction help limit environmental exposure when the case is correctly closed and secured.

Water-resistant construction should not automatically be interpreted as waterproof or submersible protection. Confirm any required ingress-protection, environmental, military, transportation, or performance standard before specifying the case for a regulated application.

Rackmount Integration and Configuration Options

Cases2Go provides equipment integration services for applications requiring installed servers, electronics, support rails, shelves, connection panels, cable management, power distribution, ventilation, labeling, accessory storage, or other application-specific components.

Available options may include 28-inch horizontal support rails, additional rack screws and washers, rack-mounting hardware, small or large accessory pockets, a caster accessory bag, a shipping label plate, and an installed heavy-duty payload kit.

Provide the equipment manufacturer and model, rack-unit requirement, chassis depth, rail-kit information, complete payload weight, center of gravity, connector locations, cooling requirements, cable-routing plan, power requirements, and available drawings. Cases2Go can help configure a rackmount transport system around the complete equipment package.
