NSN 8145-01-603-5116 6U Shock Rackmount Case

Shock-Isolated Protection for 6U Rack Equipment

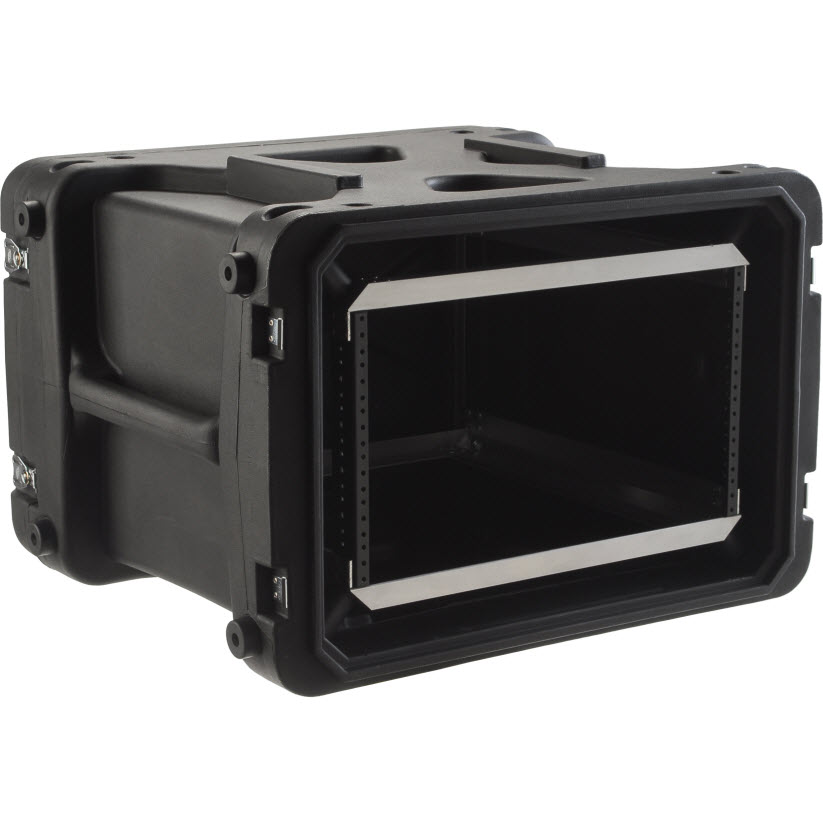

The SKB 1SKB-R906U20 combines a rigid rotomolded exterior shell with a suspended internal rack frame. Adjustable elastomer shock absorbers at all eight corners help reduce the shock and vibration transmitted to properly installed equipment during compatible transport and handling conditions.

Its 6U frame provides approximately 10.5 inches of vertical mounting space for compatible standard 19-inch equipment. The front and rear rails are pre-threaded for standard 10-32 rack hardware, and mounting hardware is included with the case.

The rail-to-rail depth is approximately 19.875 inches. Clearance from either equipment rail to the opposite closed lid is approximately 22.875 inches. Fit calculations must account for the chassis, rack ears, fasteners, connectors, cable bends, strain relief, controls, handles, ventilation space, and every other projection.

The published standard payload range is 40 to 150 pounds of installed equipment. This range is separate from the case’s approximately 41.92-pound empty weight. A suitable configuration depends on total equipment weight, center of gravity, front-to-rear balance, vertical placement, support requirements, and the conditions the loaded rack will encounter.

Full-size front and rear lids can be removed for setup, operation, inspection, maintenance, and cable access. Recessed latches reduce exterior projections, while molded-in handles provide secure grasping points. The interlocking X-pattern supports stable stacking with compatible SKB rack cases.

This shock rack does not include built-in wheels or casters. A compatible SKB caster platform is available separately. Shock-resistant construction should not automatically be interpreted as watertight, submersible, or compliant with a particular military, transportation, environmental, or ingress-protection standard. Confirm all contract requirements before procurement.

Rackmount Integration and Configuration Options

Cases2Go provides equipment integration services for applications requiring installed electronics, horizontal support rails, connection panels, cable management, power distribution, labeling, accessory storage, or other application-specific components.

Options for the SKB 1SKB-R906U20 may include a heavy-duty payload kit, horizontal support rails, additional rack hardware, a shipping-label plate, accessory pouches, replacement shock absorbers, and the compatible SKB 1SKB-1916 caster platform. Accessory compatibility and payload effects should be confirmed for the complete configuration.

Provide the equipment manufacturer and model, rack-unit requirement, chassis depth, installed weight, center of gravity, mounting information, connector locations, cooling requirements, cable-routing plan, power requirements, transportation environment, and any available drawings. Cases2Go can help determine whether the SKB 1SKB-R906U20 is suitable for the complete equipment package.
