NSN 8145-01-628-6204 Rolling Shock Rackmount Case

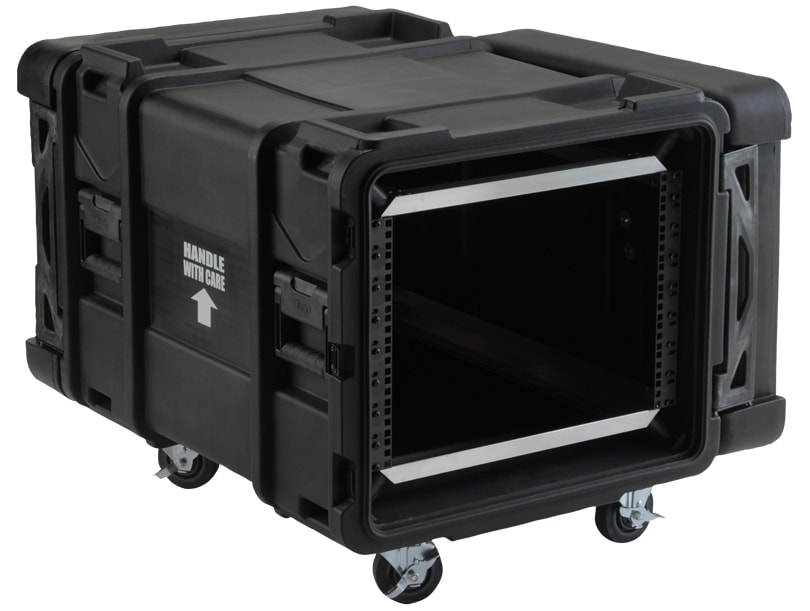

National Stock Number 8145-01-628-6204 is associated with the SKB 3SKB-R908U28 8U deep rolling shock rackmount case. This specialized shipping and storage container provides a shock-isolated internal rack for protecting compatible 19-inch rack-mounted servers, communications systems, electronics, and other sensitive equipment during transportation, storage, and field deployment.

The SKB 3SKB-R908U28 provides eight vertical rack units and approximately 29 inches of rail-to-rail mounting depth. Its deep rack frame can accommodate compatible servers, computing systems, networking hardware, test instruments, control equipment, audiovisual components, and other electronics requiring greater installed depth than a standard 20- or 24-inch rack.

Eight elastomeric shock isolators support the internal rack chassis and help reduce the transfer of shock and vibration to properly mounted equipment. The standard configuration supports a total mounted payload from approximately 40 to 150 pounds. A special-order extended-payload configuration is available for compatible loads up to approximately 300 pounds.

The patented Adjustable Rail Conversion System, or ARCS, allows the equipment-mounting width to be adjusted by up to approximately one-half inch on each side. Optional adapter rails support compatible through-hole and square cage-nut mounting configurations.

Compound-hinged front and rear lids can swing around to lie against the case body or be removed for unobstructed equipment access. Gasketed construction, recessed field-replaceable latches, an automatic pressure-relief valve, and removable four-inch casters support repeated transportation and deployment.

Confirm the required NSN, manufacturer part number, rack-unit capacity, complete installed equipment depth, payload weight, rail configuration, center of gravity, connector clearance, cooling requirements, and procurement specifications before ordering.
