NSN 8145-01-646-7119 Rolling Shock Rackmount Case

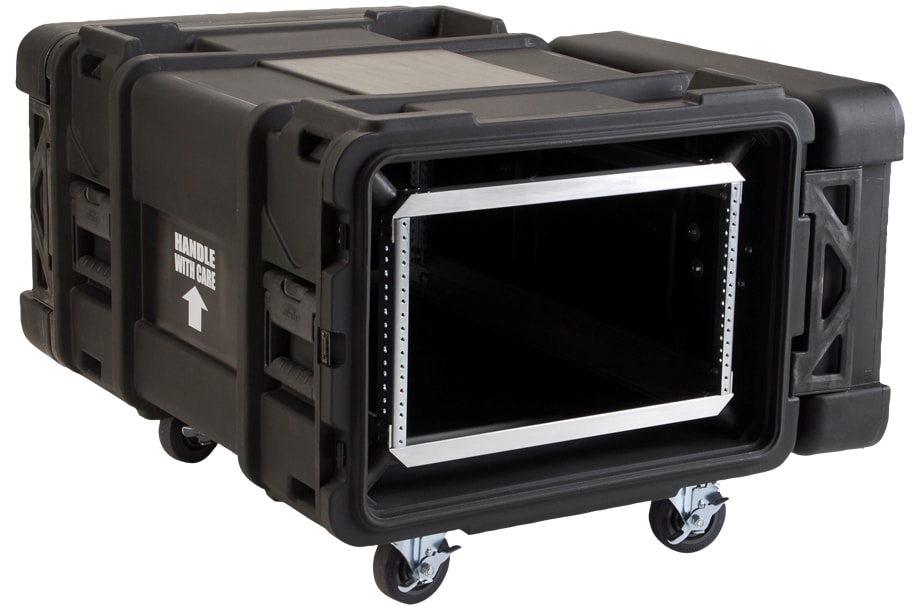

National Stock Number 8145-01-646-7119 is associated with the SKB 3SKB-R906U28 6U deep rolling shock rackmount case. This specialized shipping and storage container provides a shock-isolated rack frame for protecting compatible 19-inch rack-mounted servers, electronics, and other sensitive equipment during transportation, storage, and field deployment.

The SKB 3SKB-R906U28 provides six vertical rack units and approximately 29 inches of rail-to-rail mounting depth. Its deeper rack frame can accommodate compatible servers, communications systems, computing equipment, test instruments, control systems, and other components that require more installed depth than a standard 20- or 24-inch rack.

Eight elastomeric shock isolators support the internal rack chassis and help control shock and vibration before those forces reach the mounted equipment. The standard configuration supports a total mounted payload from approximately 40 to 150 pounds. A special-order extended-payload configuration is available for compatible loads up to 300 pounds.

The patented Adjustable Rail Conversion System, or ARCS, allows the equipment-mounting width to be adjusted by up to approximately one-half inch on each side. Optional adapter rails support alternative mounting-hole configurations, including compatible through-hole and square cage-nut systems.

Compound-hinged front and rear lids can swing around to lie against the body of the case or be removed for equipment access. Gasketed construction, recessed latches, an automatic pressure-relief valve, and removable casters support repeated transportation and deployment.

Confirm the required NSN, manufacturer part number, rack-unit capacity, complete installed equipment depth, payload weight, rail configuration, center of gravity, connector clearance, cooling requirements, and procurement specifications before ordering.
