Home > NSN Cases > 8145-01-646-7122
NSN 8145-01-646-7122 SKB 3SKB-R08U20W 8U rolling shock rackmount case

NSN 8145-01-646-7122 Rolling Shock Rackmount Case

National Stock Number 8145-01-646-7122 is associated with the SKB 3SKB-R08U20W 8U rolling shock rackmount case. This specialized shipping and storage container provides a shock-isolated, 20-inch-deep rack frame for protecting compatible 19-inch rack-mounted electronics during transportation, storage, and field deployment.

The SKB 3SKB-R08U20W uses elastomeric shock absorbers at all eight corners of the internal rack frame. The system is designed to help control shock and vibration along three axes. Its standard shockmount configuration supports a total mounted payload ranging from approximately 40 to 150 pounds when the equipment is properly installed and distributed.

The internal rack provides eight vertical rack units, equivalent to approximately 14 inches of rackable height. Threaded steel rails are installed at both the front and rear, and standard 10-32 rack-mounting screws are included.

Removable, gasket-protected front and rear lids provide equipment access while helping limit environmental exposure when properly installed. Built-in roller-blade-style wheels, a sliding retractable pull handle, and oversized side handles make the loaded rack easier to move through suitable facilities and deployment environments.

The SKB 3SKB-R08U20W is suitable for communications systems, military electronics, test equipment, audiovisual components, control systems, broadcast equipment, computing hardware, instrumentation, power-management equipment, and other sensitive rack-mounted systems.

Confirm the required NSN, manufacturer part number, rack-unit capacity, equipment depth, total payload weight, center of gravity, connector clearance, ventilation requirements, and procurement specifications before ordering.

NSN 8145-01-646-7122 Rackmount Case Information

National Stock Number 8145-01-646-7122
Item Name Shipping and Storage Container, Specialized
FSC 8145 – Specialized Shipping and Storage Containers
Manufacturer SKB Cases
Manufacturer Part Number 3SKB-R08U20W
Rack Capacity 8U
Standard Payload Range Approximately 40 to 150 pounds

Products 1-1 of 1
Show

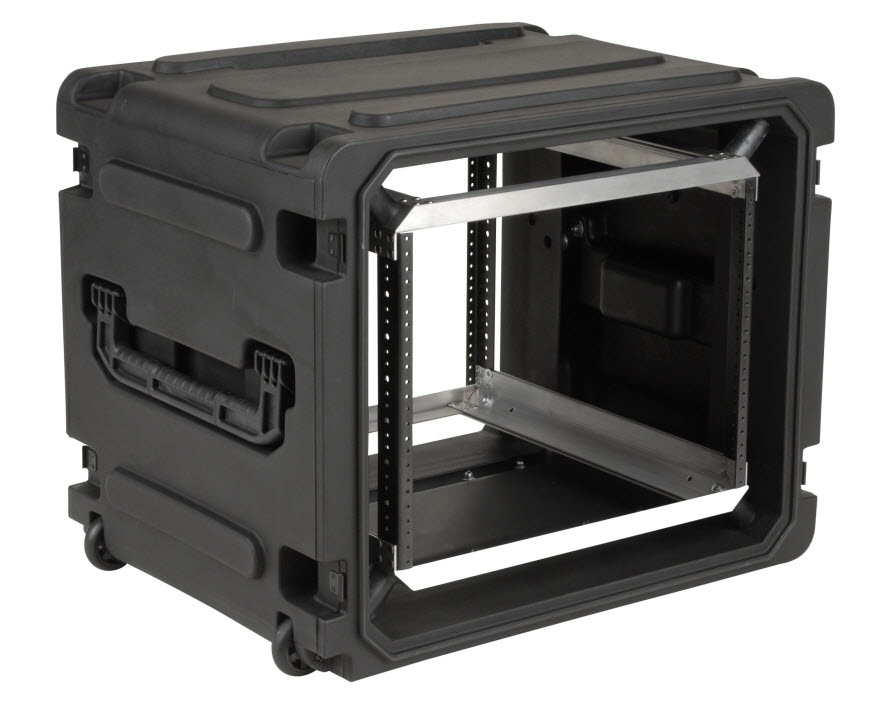

SKB 3SKB-R08U20W (Open, Left) from Cases2Go
Price: $1,154.99
View Full Product
3SKB-R08U20W | SKB 8U Rolling Shock Rack Case
3SKB-R08U20W
Availability: Built To Order
Item #: RIS-3SKB-R08U20W -

SKB Cases | 20" Deep 8U Roto Shock Rack | 3SKB-R08U20W The 3SKB-R08U20W Rolling Shockmount Case incorporates black powder coated twist latches with locking loops and a low profile injection molded pull handle with a 20 inch deep tough rotomolded shell. The molded design provides extra stiffness in the lids and sides and allows for secure stacking. Rack depth front to rear rail is 20 inches and each lid is 2-1/4 inches deep. Rack rails are pre-threaded for standard 10-32 hardware and the...

Rotomolded Rack Case for Transportation and Deployment

The tough rotomolded exterior shell helps protect the internal rack and mounted equipment during repeated handling, transportation, storage, and deployment. Molded reinforcement adds stiffness to the lids and sides while supporting secure case stacking.

Black powder-coated twist latches secure the front and rear lids. Integrated locking loops allow compatible customer-supplied locks or security devices to be added when access control is required.

An ambient pressure-relief valve helps equalize pressure changes that can occur during altitude changes and transportation. The case is described as shock and water resistant, but it should not be represented as a waterproof enclosure unless the complete configured system has been evaluated for the required environmental standard.

Rackmount Integration and Configuration Options

Cases2Go provides equipment integration services for applications requiring rack-mounted electronics, shelves, cable management, connection panels, power distribution, ventilation, accessory storage, labeling, or other application-specific components.

Available options may include horizontal support rails, additional rack hardware, accessory pockets, shipping label plates, load-spreader components, caster accessories, and heavy-duty payload kits. Options should be selected according to equipment weight, depth, mounting method, center of gravity, operating requirements, and transportation conditions.

Provide the equipment manufacturer and model, rack-unit requirement, chassis depth, total payload weight, center of gravity, mounting points, connector locations, ventilation requirements, cable-routing plan, power requirements, and available drawings. Cases2Go can help configure a rackmount transport system that protects the equipment while supporting operation and deployment.

Need NSN 8145-01-646-7122?

Cases2Go can supply the SKB 3SKB-R08U20W 8U rolling shock rackmount case or help configure a compatible protective rack system.

Talk to a Cases2Go Rackmount Case Specialist

Request an NSN Case Quote Call 813-513-9910
