Home > NSN Cases > 8145-01-649-3121

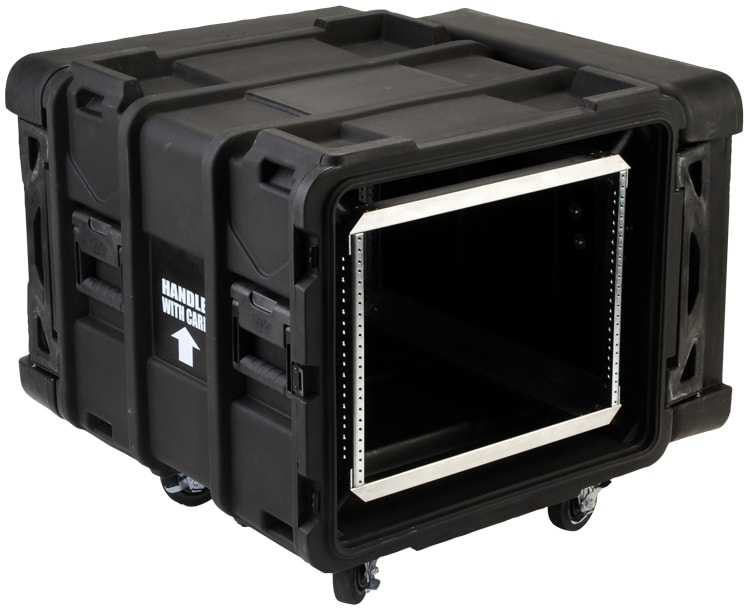

NSN 8145-01-649-3121 SKB 3SKB-R908U24 8U rolling shock rackmount case

NSN 8145-01-649-3121 Rolling Shock Rackmount Case

National Stock Number 8145-01-649-3121 is associated with the SKB 3SKB-R908U24 8U, 24-inch-deep rolling shock rackmount case. This specialized shipping and storage container provides a shock-isolated internal rack for protecting compatible 19-inch rack-mounted electronics during transportation, storage, and field deployment.

The SKB 3SKB-R908U24 provides eight vertical rack units and approximately 23.75 inches of rail-to-rail mounting depth. The rack can accommodate properly sized communications systems, servers, computing hardware, test instruments, control equipment, audiovisual components, networking hardware, and other sensitive electronics.

Eight elastomeric shock isolators support the internal rack chassis and help reduce the transfer of shock and vibration to properly mounted equipment. The standard shock configuration supports a total mounted payload ranging from approximately 40 to 150 pounds. A special-order extended-payload configuration is available for compatible loads up to approximately 300 pounds.

Compound-hinged front and rear lids can swing around to lie against the body of the case or be removed for unobstructed equipment access. The case also includes threaded front and rear rack rails, removable casters, recessed field-replaceable latches, gasketed doors, and an automatic ambient pressure-relief valve.

Confirm the required NSN, manufacturer part number, rack-unit capacity, complete installed equipment depth, total payload weight, center of gravity, connector clearance, ventilation requirements, and procurement specifications before ordering.

NSN 8145-01-649-3121 Rackmount Case Information

National Stock Number 8145-01-649-3121
Item Name Shipping and Storage Container, Specialized
FSC 8145 – Specialized Shipping and Storage Containers
Manufacturer SKB Cases
Manufacturer Part Number 3SKB-R908U24
Rack Capacity 8U
Standard Payload Range Approximately 40 to 150 pounds

Products 1-1 of 1
Show
SKB 3SKB-R908U24 (Open, Right) from Cases2Go
Price: $1,899.99
View Full Product
3SKB-R908U24 | SKB 8U 24" Deep Roto Shock Rack
3SKB-R908U24
Availability: Built To Order
Item #: RIS-3SKB-R908U24 -

SKB Cases | 24" Deep 8U Rolling Roto Shock Rack | 3SKB-R908U24 The 3SKB-R908U24 features compound hinge system and field replaceable latches that allows the lid to swing out and completely around to lie flat against the main body of the case, or you can go lid-less with an effortless lift motion and reinstall with the same ease in seconds. The standard depth front to rear rail is 24" and each lid is 4" deep. The front and rear lids are designed to protrude into the base of the case...

Rotomolded Rack Case for Transportation and Deployment

The rotomolded exterior shell helps protect the isolated rack system during repeated handling, transportation, storage, and deployment. Recessed, field-replaceable latches secure the front and rear lids while reducing unnecessary projections from the case exterior.

An automatic ambient pressure-relief valve helps equalize pressure changes caused by altitude and transportation conditions. Gasketed lids and water-resistant construction help limit environmental exposure when the case is correctly closed and secured.

Water-resistant construction should not automatically be interpreted as waterproof or submersible protection. Confirm any required ingress-protection, environmental, military, transportation, or performance standard before specifying the case for a regulated application.

Rackmount Integration and Configuration Options

Cases2Go provides equipment integration services for applications requiring installed electronics, support rails, shelves, connection panels, cable management, power distribution, ventilation, labeling, accessory storage, or other application-specific components.

Available options may include 24-inch horizontal support rails, additional rack screws and washers, rack-mounting hardware, small or large accessory pockets, a caster accessory bag, a shipping label plate, and an installed heavy-duty payload kit.

Provide the equipment manufacturer and model, rack-unit requirement, chassis depth, mounting method, complete payload weight, center of gravity, connector locations, cooling requirements, cable-routing plan, power requirements, and available drawings. Cases2Go can help configure a rackmount transport system around the complete equipment package.

Need NSN 8145-01-649-3121?

Cases2Go can supply the SKB 3SKB-R908U24 8U, 24-inch-deep rolling shock rackmount case or help configure a compatible protective rack system.

Talk to a Cases2Go Rackmount Case Specialist

Request an NSN Case Quote Call 813-513-9910
