NSN 8145-01-692-5815 Rackmount Cases

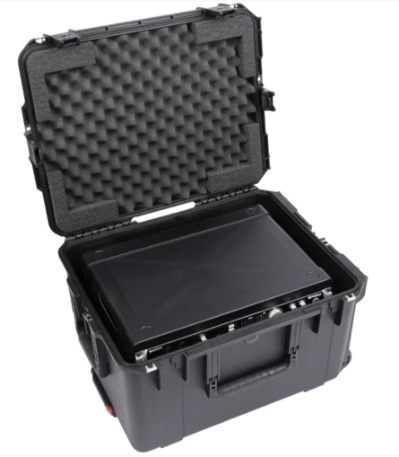

National Stock Number 8145-01-692-5815 is associated with the black SKB iSeries 3i-2217M124U waterproof 4U Fly Rack case with a 13-inch rack depth.

The 3i-2217M124U combines a removable 4U injection molded rack frame with an SKB iSeries watertight protective case. High-quality polyethylene foam surrounds the rack frame, helping cushion installed equipment while providing clearance for protruding controls, knobs, buttons, connectors, and cables.

The removable frame accommodates standard 19-inch rackmount equipment and provides four rack spaces with a 7-inch usable rack height. Its compact design is suited for communications systems, networking equipment, audio processors, broadcast gear, test instruments, control systems, field electronics, and other rack-mounted equipment requiring portable protection.

The outer case is manufactured from ultra-high-strength polypropylene copolymer resin and features gasket-sealed construction, a molded-in hinge, Travel Sentry® Approved locking Trigger Latches®, an automatic ambient pressure equalization valve, rubber over-molded cushion-grip handles, locking loops, built-in wheels, and a push-button retractable pull handle.

Cases2Go can supply the original SKB 3i-2217M124U configuration or help configure a compatible rackmount transport solution based on rack units, equipment depth, weight, connector clearances, cabling, cooling requirements, accessories, and deployment conditions.

Confirm the required NSN, manufacturer part number, rack depth, rack units, equipment clearances, dimensions, and procurement specifications before ordering.
