SKB Cases | 7U 20” Deep Static Shock Rack Mount Case | 3RS-7U20-22B
The SKB 3RS Series 7U Static Shock Rack Mount case from Cases2Go is lightweight, shockproof, watertight, dustproof, heat and chemical resistant, perfect for protecting and transporting your sensitive electronic equipment.
Molded of LMDP Linear Medium Density Polyethylene plastic that meets MIL-STD 810G standards, this Shock Rack features 8 elastomeric shock absorbers which allow for a standard payload range of 40 to 150 lbs (optional extended payload range of 160 to 300 lbs is also available). The 3RS Series Static Shock Rack is 20” deep from rail to rail with a standard 19" rack width per ANSI/EIA-310-C specification and feature square-hole rack rails to accommodate either #10-32 US standard (included) or 6mm International standard cage nuts.
The rugged roto-molded rackmount shell ensures industry leading strength and impact resistance. The standard commercial off the shelf (COTS) case comes with 2" deep front and rear lids to accommodate rack gear that is longer than 20 inches. Molded-in stacking ribs and lugs are designed to stack with all SKB 3RR and 3RS cases, as well as competitive manufacturer cases, and feature black powder coated stainless steel hardware that is recessed for protection and 4 comfort grip spring loaded lift handles which allow for easy movement. An automatic pressure relief valve is another standard feature along with gasket sealed lids that include convenient lid hangers to store your lids when your equipment is in operation. Coupling straps are included for securing the racks together when stacked. Available in Black (standard), Desert Tan, and OD Green.

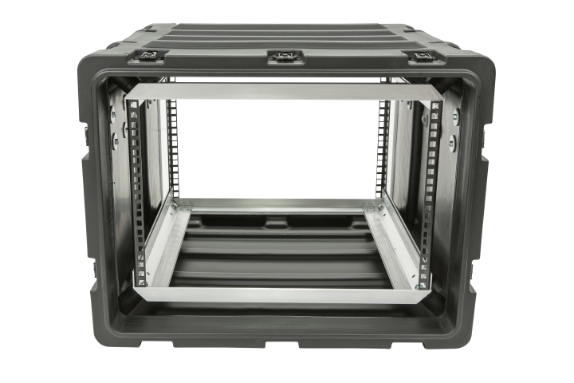

The inner rack chassis is built of high strength (but lightweight) aluminum alloy extrusions with 11 gauge hot rolled carbon steel rack rails to meet EIA-310 standards.
- Meets or exceeds MIL-STD 810G
- IP67 Certified for protection of dust ingression and water submersion (1 meter submersion for 30 minutes)
- Standard payload range of 40 to 150 lbs
- Optional extended payload range 160 to 300 lbs
- Standard 19" rack width per ANSI/EIA-310-C
- Standard rack depth 20" rail to rail
- Square hole rack rails to accommodate either #10-32 US standard or 6mm international standard cage nuts
- 2" front and rear lids
- Rugged roto-molded shell ensures industry leading strength and impact resistance
- Molded in stacking ribs and lugs are designed to stack with all SKB 3RR & 3RS cases, as well as competitive manufacturer cases
- Recessed black powder coated stainless steel hardware
- 4 comfort grip spring loaded lift handles
- Automatic pressure relief valve (standard)
- Lid hangers (standard)
- Case coupling straps (standard)
Terminology - When viewing the case from the front, L-R is Left to Right, F-B is
Front to Back, and T-B is Top to Bottom.
Refer to Drawing in Literature
- Interior Length (L-R): 19.00"
- Interior Width (F-B): 20.00"
- F-B Front Rail to Rear Lid: 22.00"
- Interior Height (T-B): 12.25"
- Total Rack Units: 7
- Inside Lid Depth: 2.00"
- Exterior Length (L-R): 23.80"
- Exterior Width (F-B): 31.50"
- Exterior Height (Including lids; T-B): 18.84"
- Shipping Dimensions: 32” x 24.50” x 19.50”
- Shipping Weight: 50.57 lbs
