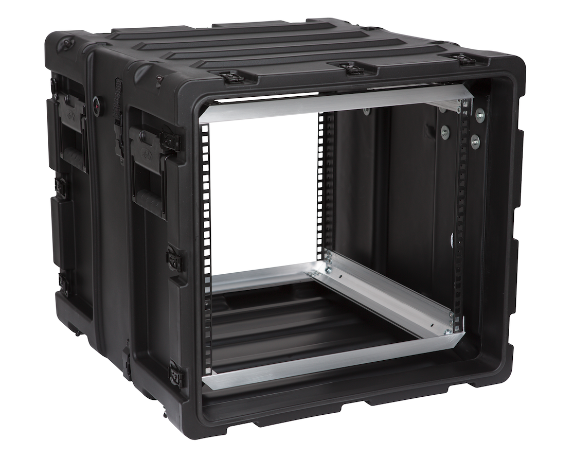

SKB Cases | 9U 20” Deep Static Shock Rack Mount Case | 3RS-9U20-22B
The SKB 3RS Series 9U Static Shock Rack Mount case from Cases2Go is lightweight, shockproof, watertight, dustproof, heat and chemical resistant, perfect for protecting and transporting your sensitive electronic equipment.
Molded of LMDP Linear Medium Density Polyethylene plastic that meets MIL-STD 810G standards, this Shock Rack features 8 elastomeric shock absorbers which allow for a standard payload range of 40 to 150 lbs (optional extended payload range of 160 to 300 lbs is also available). The 3RS Series Static Shock Rack is 20” deep from rail to rail with a standard 19" rack width per ANSI/EIA-310-C specification and feature square-hole rack rails to accommodate either #10-32 US standard (included) or 6mm International standard cage nuts.
The rugged roto-molded rackmount shell ensures industry leading strength and impact resistance. The standard commercial off the shelf (COTS) case comes with 2" deep front and rear lids to accommodate rack gear that is longer than 20 inches. Molded-in stacking ribs and lugs are designed to stack with all SKB 3RR and 3RS cases, as well as competitive manufacturer cases, and feature black powder coated stainless steel hardware that is recessed for protection and 4 comfort grip spring loaded lift handles which allow for easy movement. An automatic pressure relief valve is another standard feature along with gasket sealed lids that include convenient lid hangers to store your lids when your equipment is in operation. Coupling straps are included for securing the racks together when stacked. Available in Black (standard), Desert Tan, and OD Green.
The inner rack chassis is built of high strength (but lightweight) aluminum alloy extrusions with 11 gauge hot rolled carbon steel rack rails to meet EIA-310 standards.
- Meets or exceeds MIL-STD 810G
- IP67 Certified for protection of dust ingression and water submersion (1 meter submersion for 30 minutes)
- Standard payload range of 40 to 150 lbs
- Optional extended payload range 160 to 300 lbs
- Standard 19" rack width per ANSI/EIA-310-C
- Standard rack depth 20" rail to rail
- Square hole rack rails to accommodate either #10-32 US standard or 6mm international standard cage nuts
- 2" front and rear lids
- Rugged roto-molded shell ensures industry leading strength and impact resistance
- Molded in stacking ribs and lugs are designed to stack with all SKB 3RR & 3RS cases, as well as competitive manufacturer cases
- Recessed black powder coated stainless steel hardware
- 4 comfort grip spring loaded lift handles
- Automatic pressure relief valve (standard)
- Lid hangers (standard)
- Case coupling straps (standard)
Terminology - When viewing the case from the front, L-R is Left to Right, F-B is
Front to Back, and T-B is Top to Bottom.
Refer to Drawing in Literature
- Interior Length (L-R): 19.00"
- Interior Width (F-B): 20.00"
- F-B Front Rail to Rear Lid: 22.00"
- Interior Height (T-B): 15.75"
- Total Rack Units: 9
- Inside Lid Depth: 2.00"
- Exterior Length (L-R): 23.80"
- Exterior Width (F-B): 31.50"
- Exterior Height (Including lids; T-B): 22.34"
- Shipping Dimensions: 32” x 24.50” x 23”
- Shipping Weight: 55.54 lbs
SKB Cases Lifetime Warranty
SKB brand hardshell cases are fully warranted against defects in materials and craftsmanship for the life of the case to the original owner. That means, if your case breaks, SKB will supply replacement parts, repair the case, or replace your case for as long as you own it. Proof of Purchase is required for all warranty claims. Electronic components in SKB brand hardshell pedalboard systems are warranted for five years from date of purchase. Soft cases and gig bags are warranted for one year from date of purchase. SKB is not responsible for the shipping cost to our facility. However, SKB will cover all of the costs of repairs and/or replacements, as well as the return shipping. To request a return authorization for a warranty claim, please contact our Customer Service Department. SKB hardshell cases are warranted for life to the original owner only. Cases used rental purposes, used by institutions or schools, modified or used cases are not covered by this warranty.
Please refer to the SKB Cases Warranty page for complete details.
SKB Cases Return Policy
Non-modified SKB products may be returned for exchange or refund provided the product is unused, in perfect condition and has the original packing materials.
Accessorized, modified or customized cases are not returnable as they are manufactured to customer specifications. "Customized" is defined as the addition of any option, including but not limited to, hardware, custom foam, non-standard colors, stenciling / labeling, whether included in the product description or itemized by line. If you are unsure whether your case is stock or modified, you are encouraged to ask your salesperson.
Any authorized returns must have a pre-issued RMA number - call or email Customer Service for instructions. Requests for an RMA number must be received within seven (7) days of receipt of goods, with the exception of Warranty claims. All returned products must be properly packaged to prevent damage, in the original shipping container, and must be received by the factory within (25) days of the original delivery date.
Any approved return must be received in NEW condition and may be subject to a restocking fee, at the discretion of the manufacturer. Shipping charges are not refundable, and return shipping charges are the responsibility of the customer (except warranty returns).
The staff and owners at Cases2Go are Packaging Experts; we don't sell cameras, coolers, laptops and everything else imaginable. We are focused on one thing - the safe transportation of our customer's goods. With over 3 decades of experience, our portfolio includes thousands of standard and custom configured cases delivered to military and commercial customers worldwide.
We love speaking with our customers! Let us assist you in choosing the case that best fits its intended use. We understand transportation and its requirements; we speak ATA-300, CFR 49, UN/IATA, MIL-STD-810. We are familiar with cushioning curves, drop, shock & vibration requirements & testing, dangerous goods packaging, EMI shielding, corrosion & humidity control.
In short, Cases2Go provides turnkey packaging solutions that are field proven by some of the toughest customers in the harshest of environments. We can do the same for you !
WHEN IT'S MISSION CRITICAL, THE CASE MAKE THE MISSION POSSIBLE
Two friends meet in college in 1973 and start a business 4 years later - the rest is history. Now SKB Cases offers one of the most competitive ranges of vacuum, rotational and injection molded equipment containers available. In 2005, to demonstrate the quality of their products SKB began offering their Million Mile Lifetime Warranty on all hardshell cases.
SKB now offers more injection molded case sizes that any other manufacturer in the world. SKB is currently the only manufacturer to offer integrated TSA approved latches / locks on their iSeries injection molded cases, allowing airport screeners to easily unlock and relock the case for inspection, and preventing forced entry & damage. Servicing the entertainment, sports, military and industrial industries, it is no surprise that they are one of the top recognized brands in protective cases.
