Home > NSN Cases > NSN 8145-01-540-4450 Protective Cases

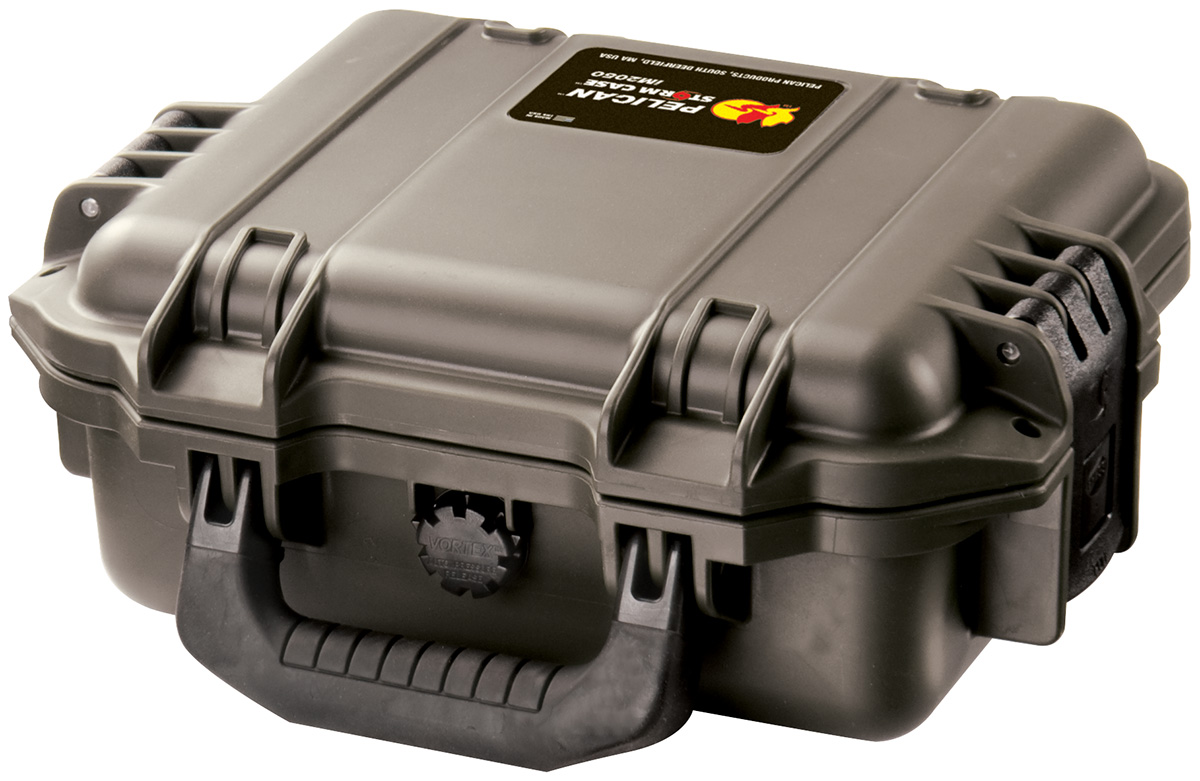

NSN 8145-01-540-4450 Pelican Storm iM2050 protective case

NSN 8145-01-540-4450 Protective Cases

National Stock Number 8145-01-540-4450 is associated with the black Pelican™ Storm Case™ iM2050, a compact, reusable protective case designed for transporting, storing, and protecting sensitive equipment.

The iM2050 features a rugged injection molded shell, gasketed construction, Press and Pull™ latches, an automatic pressure equalization valve, and a compact design suitable for military, government, industrial, communications, electronics, medical, and field equipment applications.

Cases2Go can supply the original iM2050 configuration or help identify a comparable protective case when an alternate manufacturer, interior size, foam configuration, lead time, or procurement requirement can be considered.

Confirm the required NSN, manufacturer part number, foam configuration, color, dimensions, and procurement specifications before ordering.

NSN 8145-01-540-4450 Case Information

National Stock Number 8145-01-540-4450
FSC 8145 – Specialized Shipping and Storage Containers
Original Case Series Pelican™ Storm Case™
Original Case Model iM2050
Case Color Black
Interior Dimensions 9.50 × 7.50 × 4.25 inches
Exterior Dimensions 11.80 × 9.80 × 4.70 inches
Available Interior Options Empty, cubed foam, custom foam, or application-specific interior
Case Type Injection molded watertight protective case

Alternative Cases for NSN 8145-01-540-4450

The cases below are possible commercial alternatives to the iM2050 when the original product is unavailable or when another manufacturer is preferred.

These products should be treated as dimensional or functional alternatives, not as automatic NSN substitutions. The contracting officer, procurement authority, end user, or applicable technical documentation should approve any alternate product before purchase.

Case Interior Dimensions Comparison Recommended Configuration
Pelican™ Storm iM2050 9.50 × 7.50 × 4.25 in. Original case associated with the NSN. Black with cubed foam.
SKB 3i-0907-4B-E Approximately 9.50 × 7.25 × 4.00 in. Very close in length, 0.25 inch narrower, and 0.25 inch shallower. Black with cubed foam.
NANUK 905 9.40 × 7.40 × 5.50 in. Nearly identical in length and width, but approximately 1.25 inches deeper. Black with cubed foam.



Products 1-3 of 3
Show
SKB 3i-0907-4B-E Utility Case Empty from Cases2Go - Image 1
Price: $64.99
View Full Product
3i-0907-4B-E | SKB iSeries Waterproof Utility Case
3i-0907-4B-E
Availability: Available
Item #: RIS-3i-0907-4B-E -

SKB Cases | iSeries Waterproof Shipping Utility Case (Empty) | 3i-0907-4B-E 9.50" x 7.38" x 4.13" Inside Dimensions The SKB 3i-0907-4B-E is molded of ultra high-strength polypropylene copolymer resin and features a gasketed, waterproof and airtight, submersible design (IP67 and MIL-C-4150J) that is resistant to UV, solvents, fungus, corrosion and impact damage (MIL-STD-810H). Its molded-in hinges, patented "trigger release" latch system, comfortable, snap-down rubber over-molded cushion grip...

Nanuk 905 | Empty | Black
Price: $64.95
View Full Product
NANUK® Cases | 905 | Lightweight Waterproof Shipping Case
905S
Availability: Available
Item #: RLN-905S -

NANUK® Cases | 905 | Lightweight Waterproof Shipping Case 9.4" x 7.4" x 5.5" Inside Dimensions Perfect to organize, protect and carry your bulkier compact items, the NANUK® 905 waterproof hard case is impenetrable and indestructible with a lightweight, tough resin shell and double side-mounted PowerClaw superior latching system. Waterproof, dustproof, and indestructible, the NANUK® 905 is ideal for batteries, lenses, smartphones, flash drives, hard drives, cameras, microphone systems, pistols,...

Pelican iM2975 Airtight Watertight Carry Case with Foam Filled Interior - Black
Price: QUOTE
View Full Product
Pelican™ Storm Cases™
Availability: Available
Item #: RHD-Storm-Case -

Pelican™ Storm Cases™ Injection Molded Carry Cases Pelican™ Storm Case™ injection molded cases are built for professional equipment protection with nearly indestructible HPX resin plastic construction. These waterproof shipping cases feature automatic pressure equalization valves, hinged push-button latches, pad lockable hasps, fold-down handles, and O-ring gasket seals that exceed ATA Specification 300, Category 1 and MIL-STD-810 standards. Larger Storm cases include retractable handles with...

SKB 3i-0907-4B-E Alternative

The SKB 3i-0907-4B-E is the closest SKB alternative based on usable interior dimensions. It provides approximately the same interior length as the iM2050, while being slightly narrower and shallower.

The SKB iSeries case features a gasket-sealed injection molded construction, automatic pressure equalization valve, molded-in hinge, Trigger Latch® system, and resistance to impact, water, dust, corrosion, solvents, fungus, and UV exposure.

This alternative should only be selected after verifying that the payload and required foam clearance will fit within its slightly smaller width and depth.

NANUK 905 Alternative

The NANUK 905 is a close alternative in length and width and provides additional interior depth. Its interior measures approximately 9.40 × 7.40 × 5.50 inches.

The NANUK 905 is constructed from lightweight NK-7 resin and includes PowerClaw latches, stainless steel hardware, an automatic pressure release valve, a gasketed closure, padlock holes, and a soft-grip carrying handle.

Because the NANUK 905 is deeper than the iM2050, additional foam may be required to properly support a payload originally packaged for the iM2050.

Choosing an Approved NSN Case Alternative

A case with similar dimensions is not necessarily an approved replacement for an NSN-specified product. Before substituting a case, confirm all required characteristics, including:

  • Minimum usable interior dimensions
  • Equipment and payload dimensions
  • Required foam type and cushioning thickness
  • Case color
  • Water, dust, impact, and environmental requirements
  • Required military or transportation testing
  • Maximum exterior dimensions and weight
  • Latch, handle, pressure valve, and padlock requirements
  • Contract, solicitation, drawing, or technical specification requirements
  • Authorization to provide an equal or alternate product

Custom Foam for NSN Cases

Cases2Go can provide custom foam interiors for the iM2050 and compatible alternative cases.

Provide the equipment make and model, payload dimensions, weight, fragility, orientation, required clearances, and any available CAD drawings or photos. Our team can help design an interior that supports the equipment and reduces movement during shipping, storage, and field deployment.

Need NSN 8145-01-540-4450 or an Approved Alternative?

Cases2Go can help source protective case alternatives. Include the NSN, required quantity, foam configuration, delivery requirements, procurement documentation, and any approved equal specifications with your request.

Talk to a Cases2Go Case Specialist

Request an NSN Case Quote Call 813-513-9910
